Kia Rio: Lighting System / Rheostat

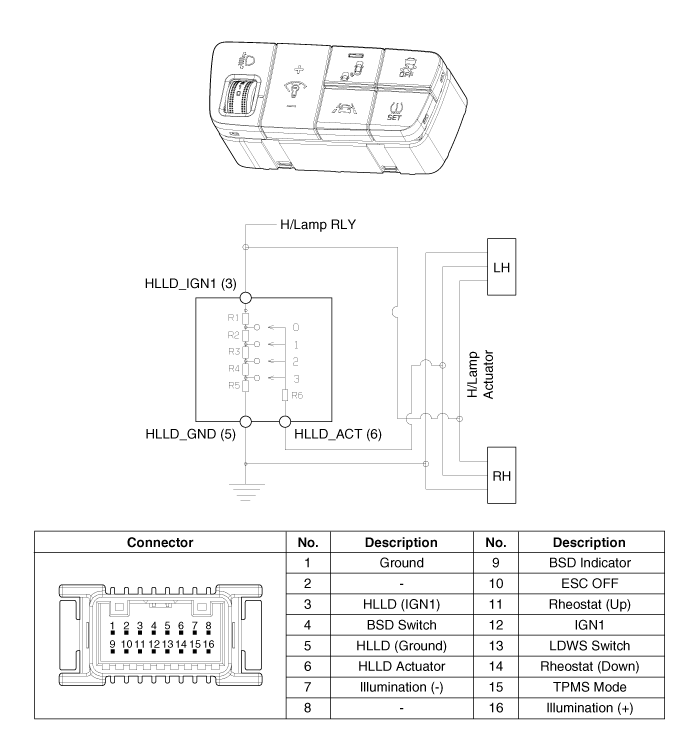

Components and components location
| Components |
Repair procedures
| Removal |
| 1. |
Disconnect the negative (-) battery terminal. |
| 2. |
Remove the crash pad lower panel. (Refer to Body - "Crash Pad Lower Panel") |
| 3. |

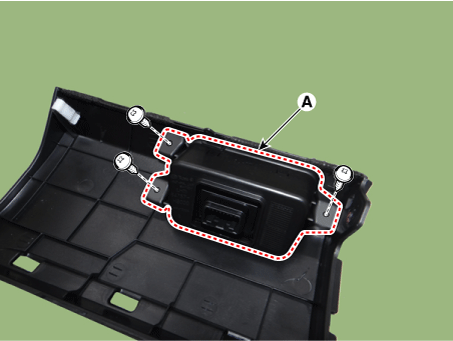

Remove the crash pad side switch (A) after loosening the mounting screws.
|
| Installation |
| 1. |
Install the crash pad side switch. |
| 2. |
Install the crash pad lower panel. |
| 3. |
Connect the negative (-) battery terminal. |
| Inspection |
| 1. |

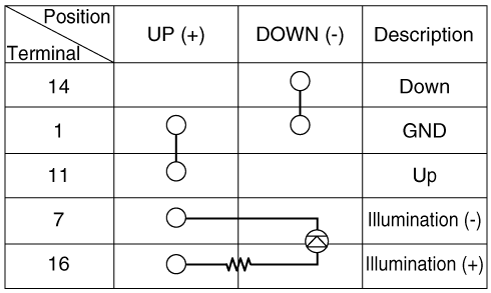

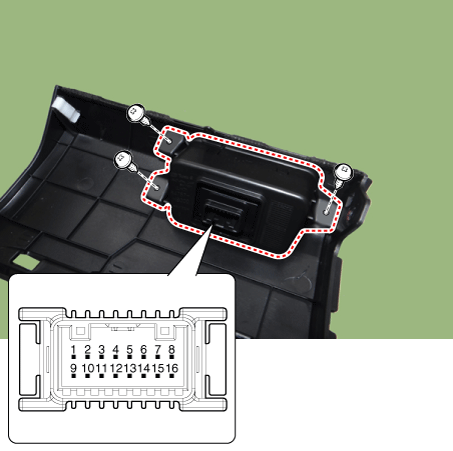

Check for intensity of new rheostat switch. If the light intensity of the lamps changes smoothly without any flickering when the rheostat is turned, it can be assumed that the rheostat is normal.
|
Hazard Lamp Switch
Repair procedures
Inspection
1.
Check for continuity between terminals. If the continuity is not as specified,
replace the hazard lamp switch.
...
Front Fog Lamps
Repair procedures
Removal
1.
Disconnect the negative (-) battery terminal.
2.
Remove the front bumper assembly.
(Refer to Body - "Front Bump ...
