Kia Rio: Lighting System / Hazard Lamp Switch

Kia Rio 2017-2020 YB Service Manual / Body Electrical System / Lighting System / Hazard Lamp Switch
Repair procedures
Inspection
1.

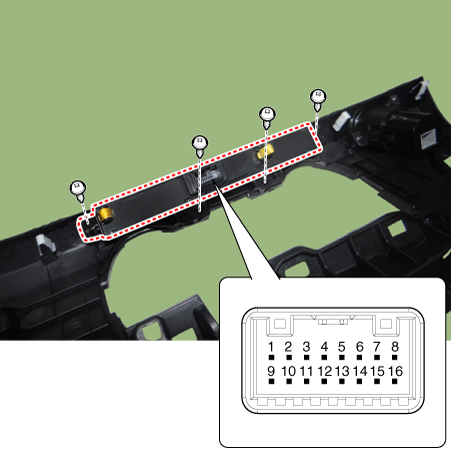

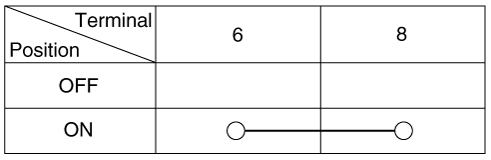

Check for continuity between terminals. If the continuity is not as specified, replace the hazard lamp switch.

No.
Description
No.
Description
1
Battery (+)
9
Illumination (+)
2
IGN1
10
-
3
PAB ON
11
PAB OFF
4
Rear center seat belt
12
Rear right seat belt
5
Passenger air bag
13
Rear left seat belt
6
Hazard mode
14
Door lock switch
7
-
15
Door lock indicator
8
Ground
16
Illumination (-)

Removal


When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.

Be careful to store and handle the crash pad when removing/installing because lubricant and oil can leave a stain on the trim.

1.

Disconnect the negative (-) battery terminal.

2.

Remove the crash pad center lower panel.

(Refer to Body - "Crash Pad Center Panel")

3.

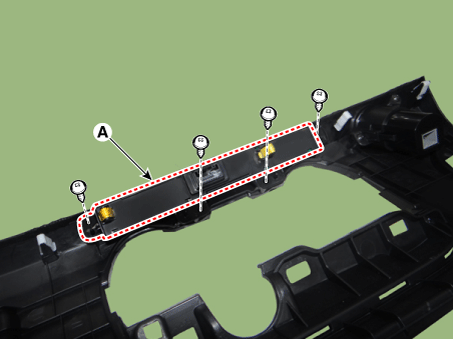

Remove the hazard warning lamp switch (A) after loosening the mounting screws.

Installation
1.

Install the hazard warning lamp switch.

2.

Install the crash pad center lower panel.

3.

Connect the negative (-) battery terminal.
