Kia Rio: Crash Pad / Crash Pad Lower Panel

Kia Rio 2017-2020 YB Service Manual / Body (Interior and Exterior) / Crash Pad / Crash Pad Lower Panel
Components and components location
Component Location

1. Crash pad lower panel


Repair procedures
Replacement


Put on gloves to protect your hands.



Use a plastic panel removal tool to remove interior trim pieces without marring the surface.

Be careful not to bend or scratch the trim and panels.

1.

Remove the cluster fascia panel (A) by using a remover.

2.

Remove the crash pad side cover [LH] (A) by using a remover.

3.

Remove the front door scuff trim (A) by using a remover.

4.

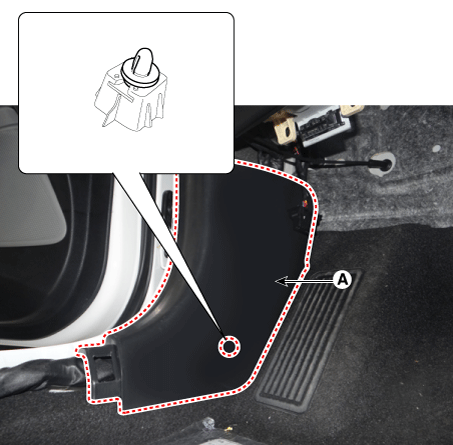

Remove the cowl side trim (A) by using a remover.

5.

Remove the passenger compartment junction box cover (A).

6.

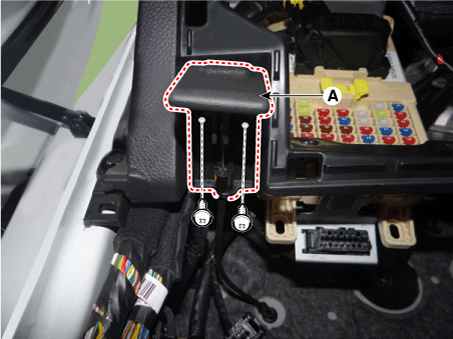

Separate the hood latch release handle cable (A) after loosening the mounting screws.

7.

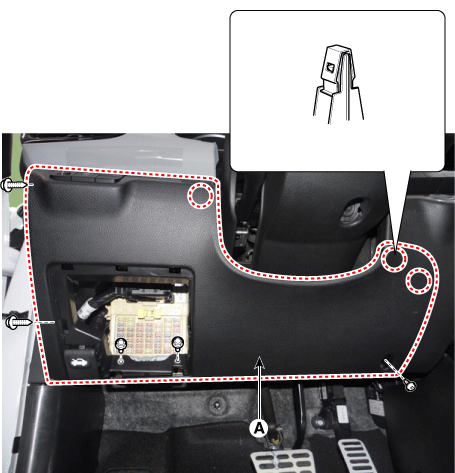

Separate the crash pad lower panel (A) after loosening the bolts and screws.

8.

Disconnect the crash pad lower side switch connector (A).

9.

Install in the reverse order of removal.



Make sure the connector is connected properly.

Replace any damaged clips.
