Kia Rio: Crash Pad / Glove Box Housing

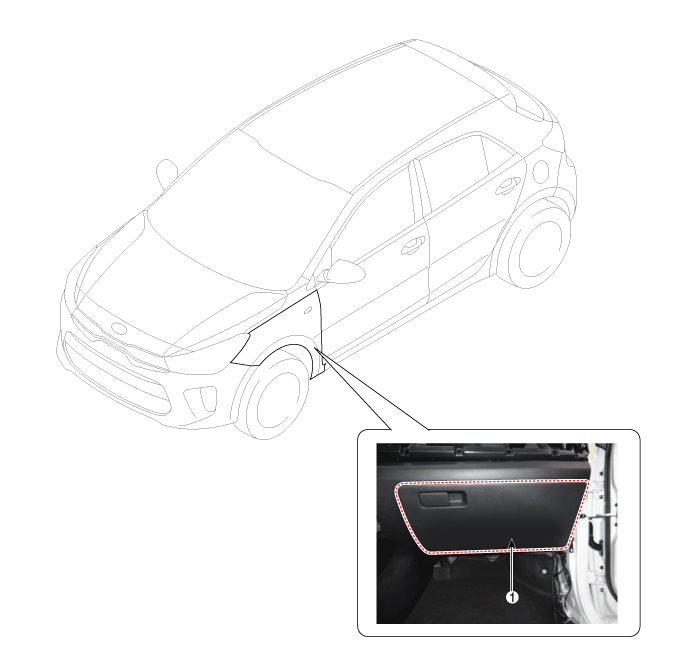

Components and components location
1. Glove box housing assembly
|
|
Repair procedures
|
Put on gloves to protect your hands.
|
| • |
Use a plastic panel removal tool to remove interior trim pieces
without marring the surface.
|
| • |
Be careful not to bend or scratch the trim and panels.
|
|
| 1. |

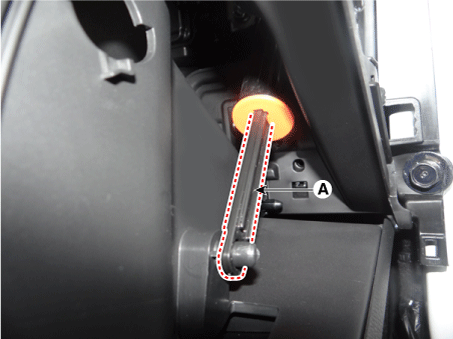

Disconnect the stopper (B) from the glove box (A).
|
| 2. |
Disconnect the air damper (A) from the glove box.
|
| 3. |
Disconnect the pins (A) and then remove the glove box (B).
|
| 4. |
Install in the reverse order of removal.
| •
|
Replace any damaged clips.
|
|
|
