Adjusting Instrument Cluster Illumination
The instrument panel illumination intensity can be adjusted by pressing the control switch with the headlight switch in any position when the ignition switch is in the ON position.
The illumination intensity is shown on the instrument cluster LCD window.

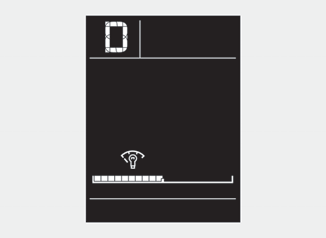

■ Type A

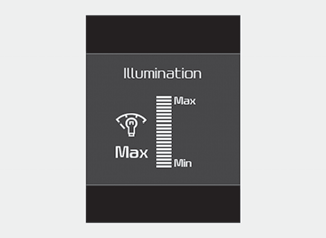

■ Type B
- If you hold the illumination control button (“+” or “-”), the brightness will be changed continuously.
- If the brightness reaches the maximum or minimum level, an alarm will sound.
Instrument cluster
■ Type A
■ Type B
1. Tachometer
2. Speedometer
3. Engine coolant temperature gauge
4. Fuel gauge
5.Warning and indicator lights
6. LCD display ...
LCD window Control
The LCD window modes can be changed by using the control buttons on the steering
wheel.
[Type A]
(1) TRIP : TRIP button for changing trip modes
(2) RESET : RESET button for resetting items
[Ty ...
