Kia Rio: Intake And Exhaust System / Intake Manifold
Components and components location

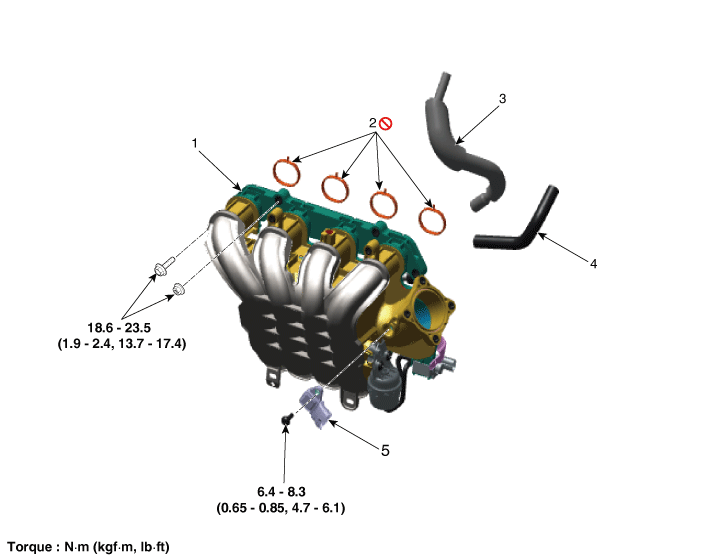

| Components |
| 1. Intake manifold 2. Intake manifold gasket 3. Positive crankcase ventilation (PCV) hose |
4. Purge control solenoid valve
(PCSV) hose 5. Manifold absolute pressure sensor (MAPS) |
Repair procedures
| Removal and Installation |
| 1. |
Disconnect the battery negative terminal. |
| 2. |
Remove the air cleaner assembly. (Refer to Intake and Exhaust System - "Air Cleaner") |
| 3. |

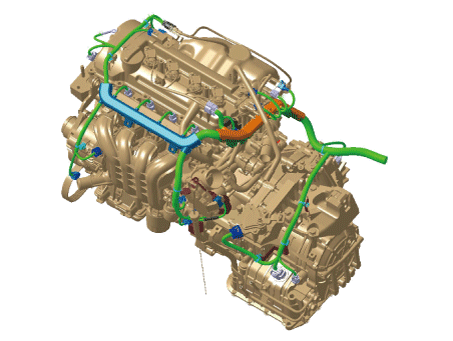

Disconnect the wiring connectors and harness clamps and remove the connector brackets around the intake manifold.
|
| 4. |
Unfasten the electronic throttle body control (ETC) module bolts. (Refer to Engine Control/Fuel System - "ETC (Electronic throttle body control) System") |
| 5. |
Disconnect the positive crankcase ventilation (PCV) hose (A).
|
| 6. |

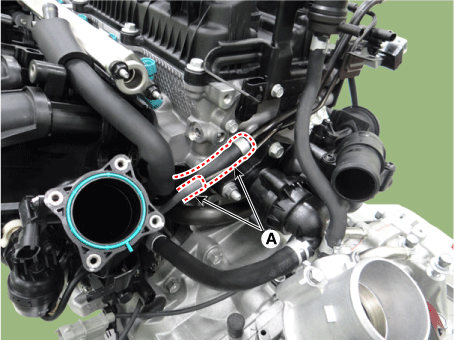

Disconnect the vacuum hose (A).
|
| 7. |
Remove the oilv level gauge. (Refer to Lubrication System -"Oil Level Gauge & Pipe") |
| 8. |

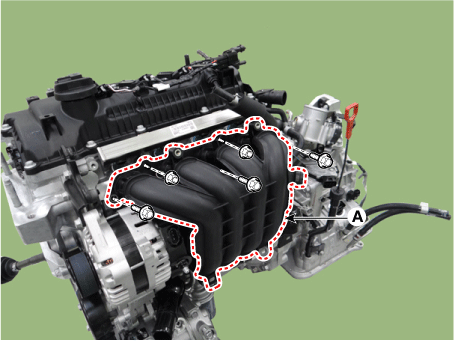

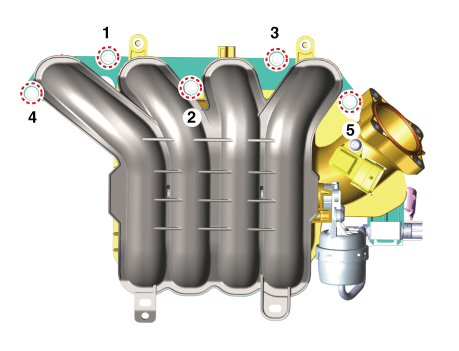

Remove the intake manifold (A).
|
| 9. |
Installation is reverse order of removal. |
