Kia Rio: Body (Interior and Exterior) / Trunk Trim

Kia Rio 2017-2020 YB Service Manual / Body (Interior and Exterior) / Trunk Trim

Components and components location

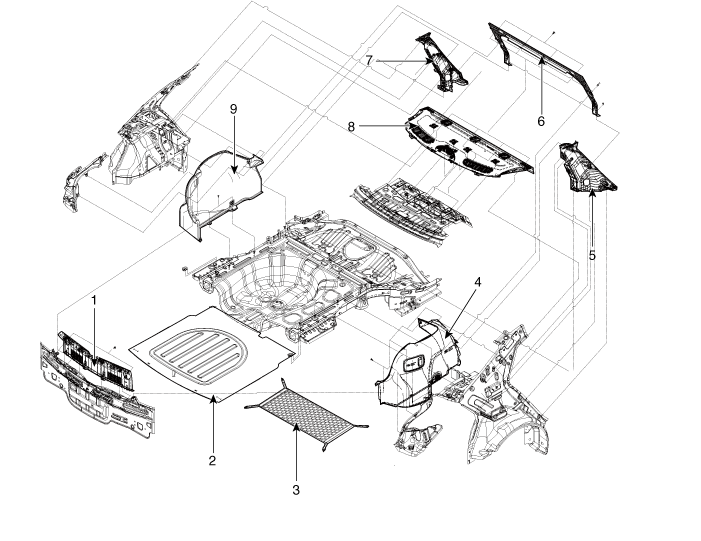

Components

1. Rear transverse trim
2. Luggage covering mat
3. Luggage floor net
4. Luggage side trim [RH]
5. Rear wheel house trim [RH]

6. Luggage partition side trim [RH]
7. Rear wheel house trim [LH]
8. Rear package tray trim
9. Rear wheel house trim [LH]

Repair procedures

Replacement

Put on gloves to protect your hands.

•	Use a plastic panel removal tool to remove interior trim pieces without marring the surface.

•	Take care not to bend or scratch the trim and panels.

1.	Remove the rear seat assembly. (Refer to Rear Seat - "Rear Seat Assembly")

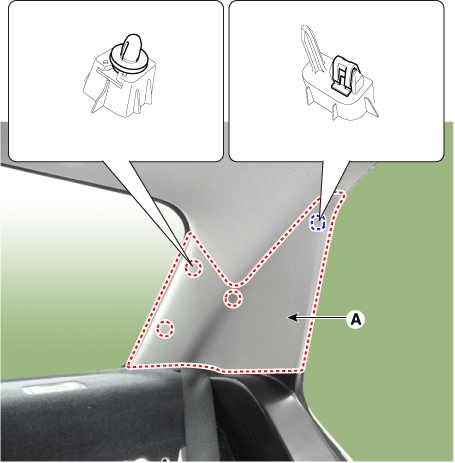

2.	Remove the rear pillar trim (A) by using a remover.

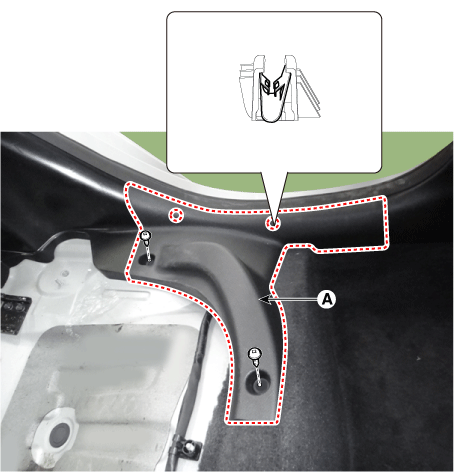

3.	Remove the rear door scuff trim.

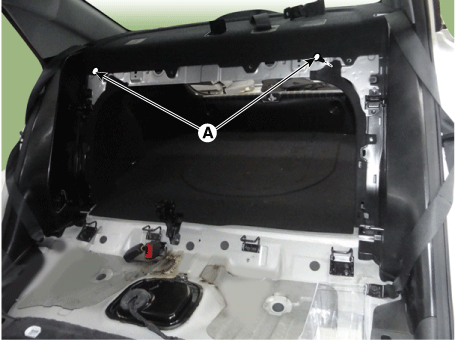

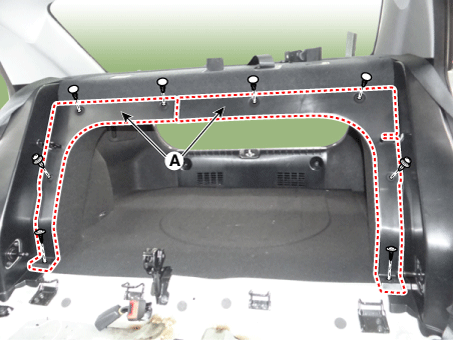

4.	Remove the rear partition trim (A) after looseing the mountin screw.

5.	Remove the luggage side trims mounting clips (A).

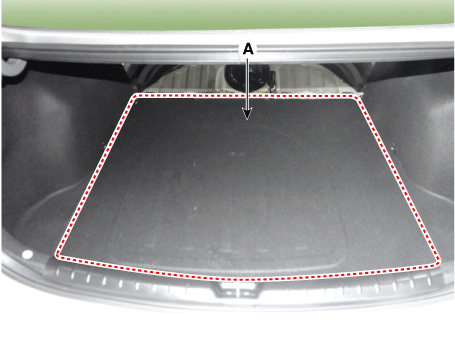

6.	Remove the luggage covering (A).

7.	Separate the tailgate weatherstrip.

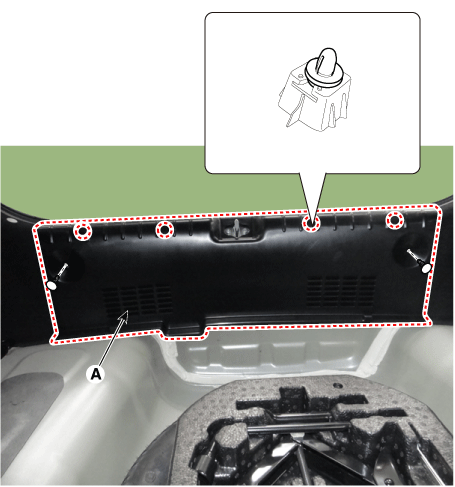

8.	Remove the rear transverse trim (A).

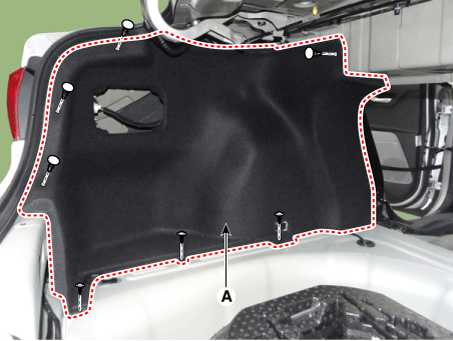

9.	Remove the luggage side trim (A) after loosening the screws and clips.

10.

Install in the reverse order of removal.

•	Make sure that the connector is connected properly.

•	Replace any damage clips.
