Kia Rio: General Information / Lift And Support Points
General information
|
When heavy rear components such as suspension, fuel tank, spare tire,
tailgate and trunk lid are to be removed, place additional weight in the
luggage area before hoisting. When substantial weight is removed from the
rear of the vehicle, the center of gravity may change and can cause the
vehicle to tip forward on the hoist.
|
| • |
Since each tire/wheel assembly weights approximately 14kg (30lbs),
placing the front wheels in the luggage area can assist with the
weight distribution.
|
| • |
Use the same support points to support the vehicle on safety
stands.
|
|
| 1. |

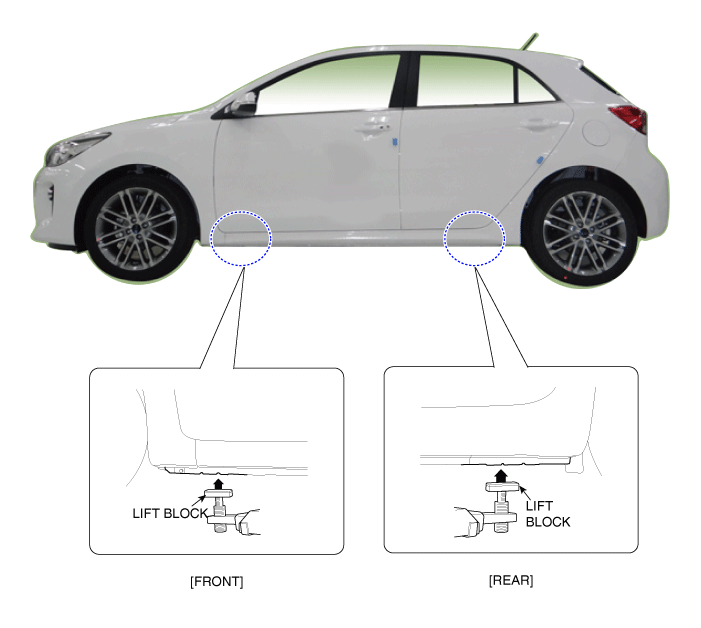

Place the lift blocks under the support points as shown in the illustration.
|
| 2. |
Raise the hoist a few inches (centimeters) and rock the vehicle to be
sure it is firmly supported.
|
| 3. |
Raise the hoist to full height to inspect the lift points for secure
support.
|
