Kia Rio: Heating and air conditioning / MAX A/C-Level (B, D)
Kia Rio 2017-2020 YB Owners Manual / Features of your vehicle / Manual climate control system / Heating and air conditioning / MAX A/C-Level (B, D)

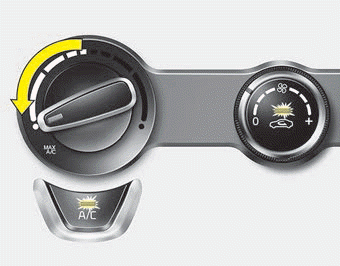

The MAX A/C mode is used to cool the inside of the vehicle faster. Air flow is directed toward the upper body and face.
In this mode, the air conditioning and the recirculated air position will be selected automatically.

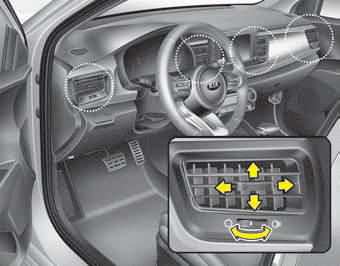

Instrument panel vents
The outlet vents can be opened or closed separately using the thumbwheel.
Also, you can adjust the direction of air delivered from these vents using the vent control lever as shown.
Mode selection
The mode selection knob controls the direction of the air flow through the ventilation
system.
Air can be directed to the floor, dashboard outlets, or windshield. Five symbols
are used to repre ...
Temperature, Air intake control
Temperature control
The temperature control knob allows you to control the temperature of the air
flowing from the ventilation system. To change the air temperature in the passenger
compartment ...
