Kia Rio 2017-2020 YB Service Manual / Body Electrical System / Audio / Multimedia Jack
Schematic diagrams

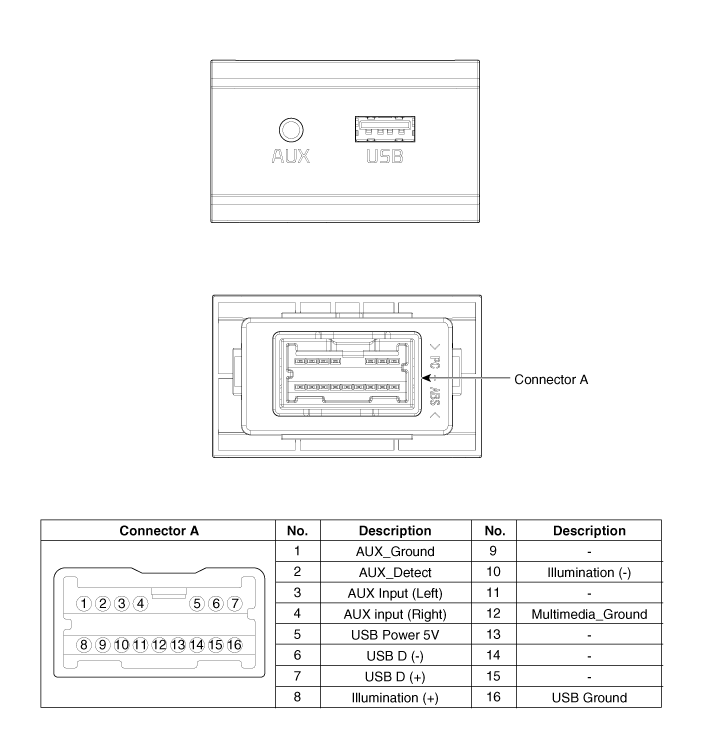

Circuit Diagram

Description and operation
Description

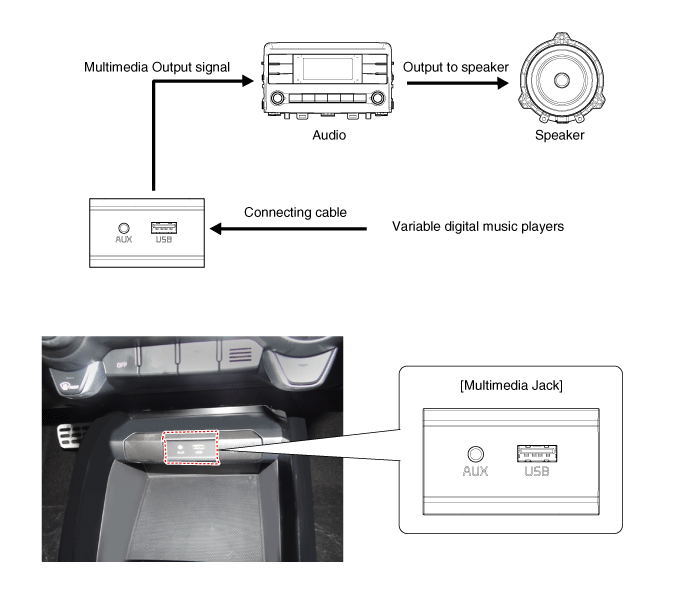

The multimedia jack on the console upper cover is for customers who like to listen to external portable music players like the MP3 etc., through the vehicle's sound system when it is linked to this jack. The customer has this added option.

In case of distorted sound coming from the AUX-linked external music players, the audio unit may not be defective but the output level of the player does not match the specification of the AUX.

Repair procedures
Removal

Multimedia Jack



Put on gloves to protect your hands.



When prying with a flat-tip screwdriver or use a prying trim tool, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.

Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.

Take care not to bend or scratch the trim and panels.

1.

Disconnect the negative (-) battery terminal.

2.

Remove the front console upper cover.

(Refer to Body - "Floor Console Assembly")

3.

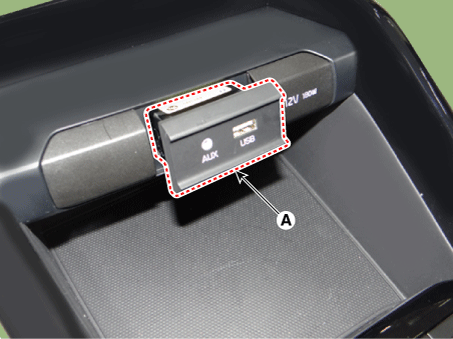

Remove the multimedia jack (A) after releasing the fixed hooks.

USB Charger



Put on gloves to protect your hands.



When prying with a flat-tip screwdriver or use a prying trim tool, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.

Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.

Take care not to bend or scratch the trim and panels.

1.

Disconnect the negative (-) battery terminal.

2.

Remove the floor console assembly.

(Refer to Body - "Floor Console Assembly")

3.

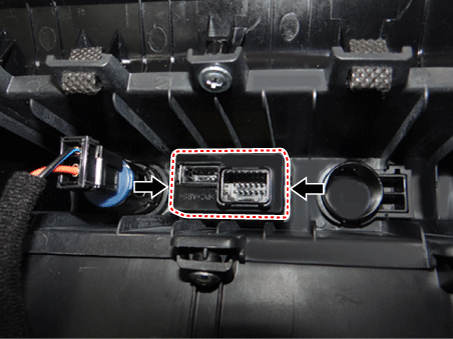

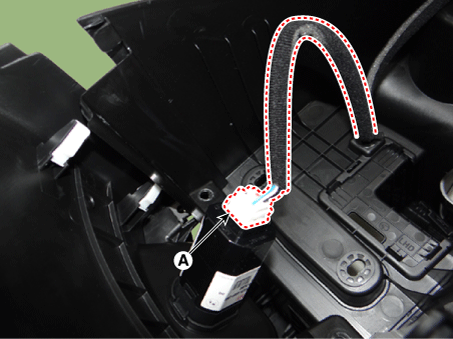

Disconnect the USB charger connector (A).

4.

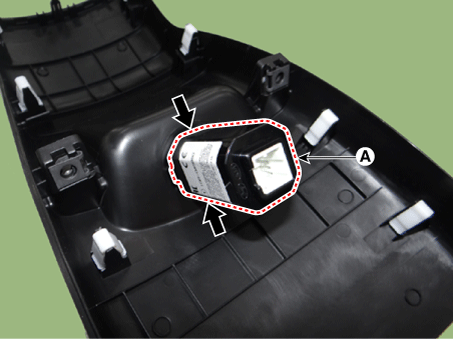

Remove the USB charger (A) after releasing the fixed hooks.

Installation

Multimedia Jack

1.

Install the multimedia jack.

2.

Install the front console upper cover.

3.

Connect the negative (-) battery terminal.



Make sure the multimedia connector and the console front tray connectors are plugged in properly.

Check the audio system for normal operation.

USB Charger

1.

Install the USB charger.

2.

Connect the USB charger connector.

3.

Install the floor console assembly.

4.

Connect the negative (-) battery terminal.



Make sure that the cables and connectors are plugged in properly.
