Kia Rio: Body (Interior and Exterior) / Quarter Fixed Glass
Components and components location

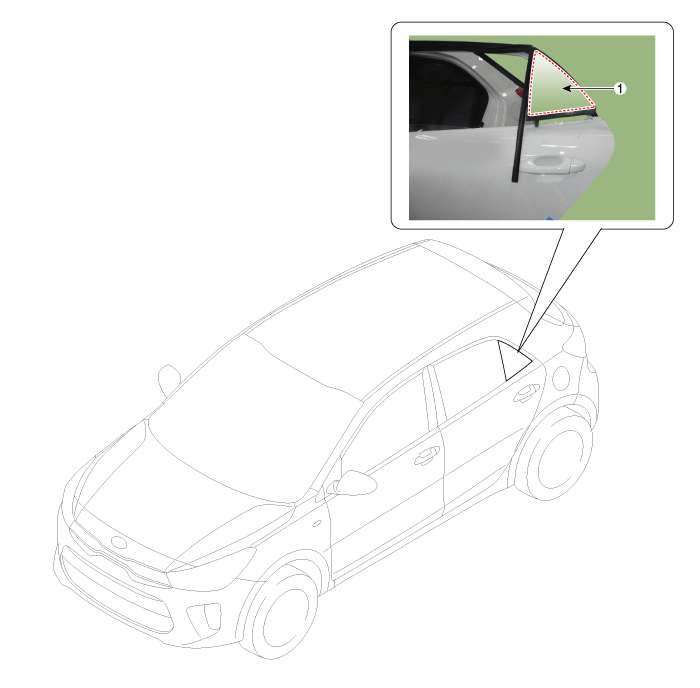

| Component Location |
| 1. Quarter fixed glass |
Repair procedures
| Replacement |
| 1. |
Pull down rear door window glass by pressing the power window glass switch. |
| 2. |
Remove the rear door trim. (Refer to Rear Door - "Rear Door Trim") |
| 3. |
Remove the door pull handle mounting support (A) after loosening the screws.
|
| 4. |

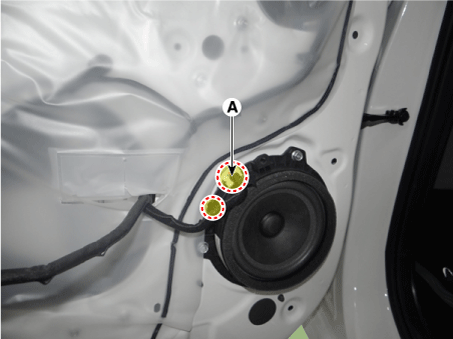

Disconnect the front door speaker connector (A), and then remove the wiring mounting clips.
|
| 5. |
Remove the front door trim seal (A).
|
| 6. |
Remove the front door belt inside weather strip (A).
|
| 7. |

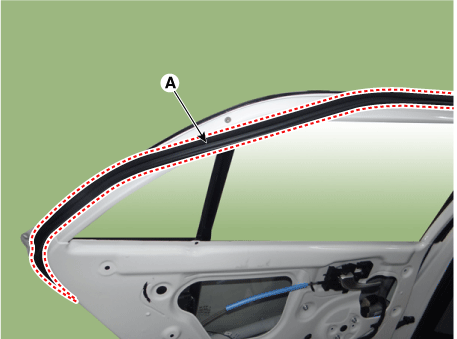

Remove the front door belt outside weather strip (A).
|
| 8. |
Separate the door side weatherstrip (A).
|
| 9. |
Loosen the mounting screw and bolt.
|
| 10. |

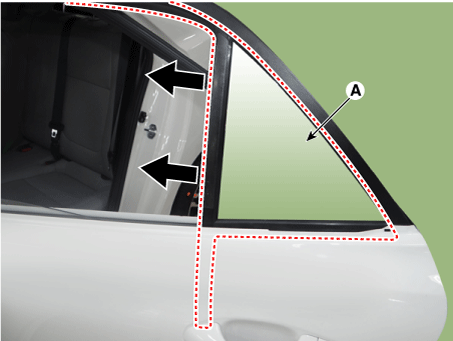

Remove the quarter fixed glass & molding (A).
|
| 11. |

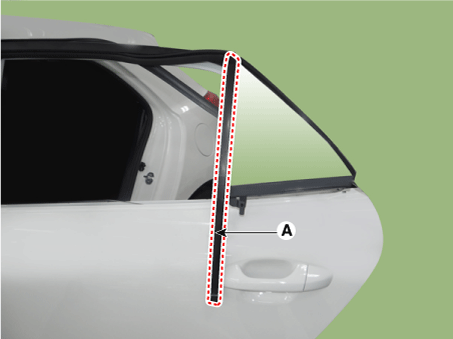

Remove the rear door molding (A).
|
| 12. |

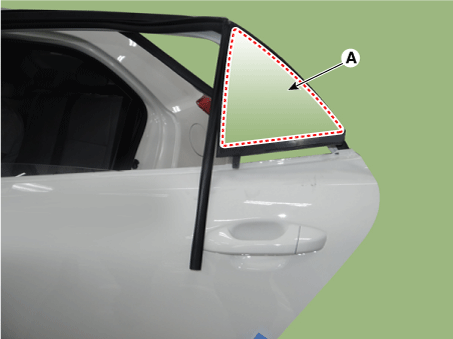

Remove the quarter fixed glass (A).
|
| 13. |
Install in the reverse order of removal.
|
