Kia Rio: ear Bumper / Rear Bumper Assembly
Components and components location
| Component Location |

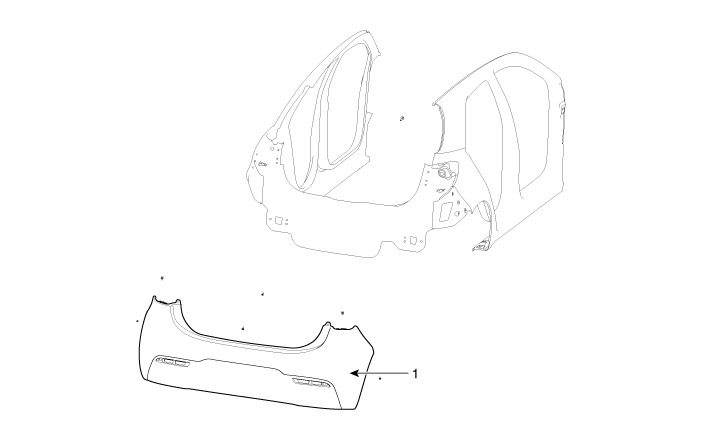

| 1. Rear bumper cover |
Repair procedures
| Replacement |
Put on gloves to protect your hands. |
|
| 1. |

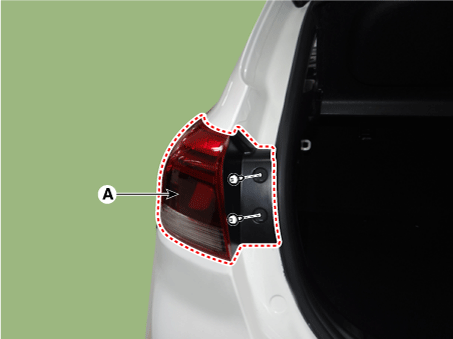

Separate the rear combination lamp (A) after loosening the mounting screws.
|
| 2. |

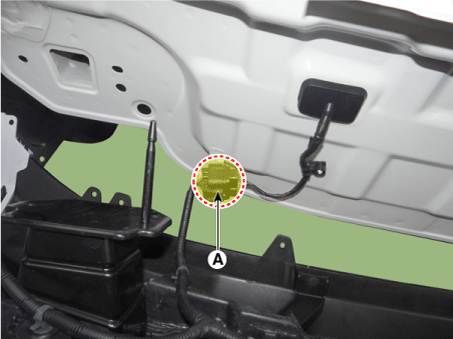

Disconnect the watherproof seal (A).
|
| 3. |

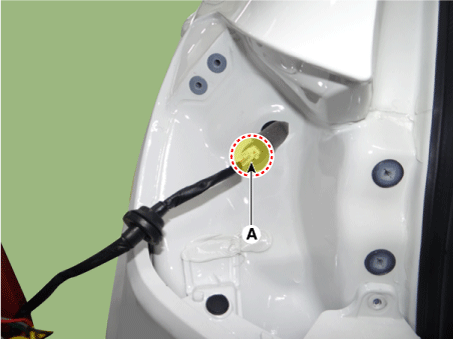

Disconnect the rear combination lamp connector (A).
|
| 4. |

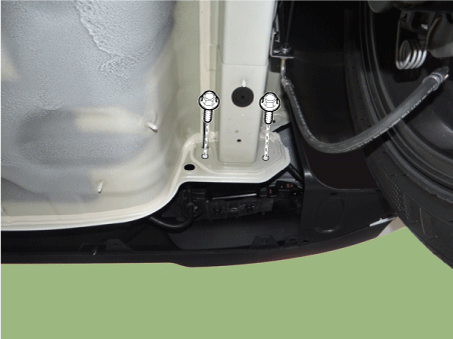

Loosen the rear bumper upper mounting fastener.
|
| 5. |

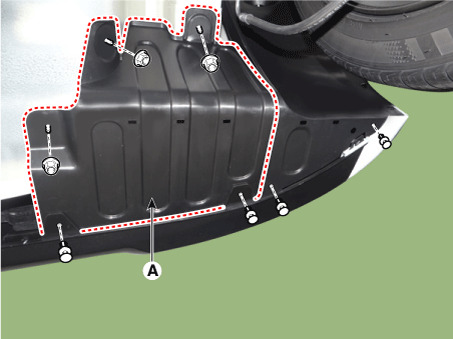

Remove the rear bumper side under cover after loosening the mounting nuts and clips.
|
| 6. |

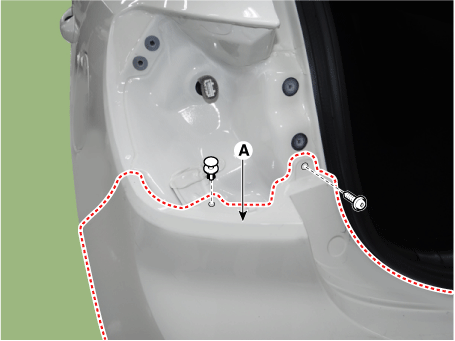

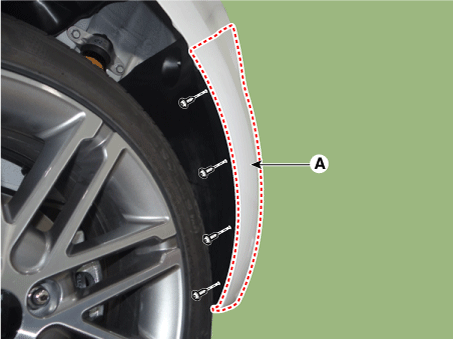

Remove the rear bumper side after loosening the mounting screws.
|
| 7. |

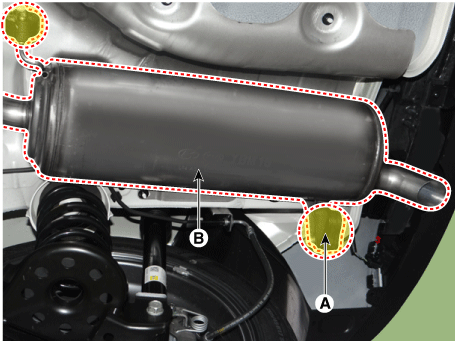

Detach the rubber hangers (A) from the muffler (B).
|
| 8. |

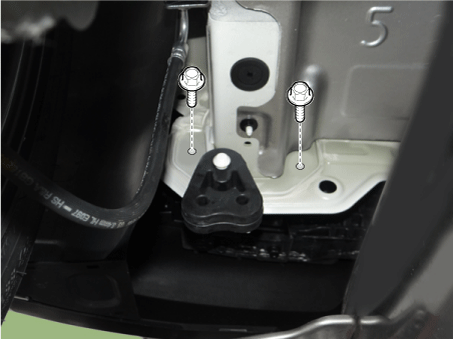

Loosen the mounting bolts. [LH]
[RH]
|
| 9. |
Remove the rear bumper after disconnecting the rear bumper wiring connector (A).
|
| 10. |
Install in the reverse order of removal.
|
ear Bumper
Components and components location
Components
1. Rear bumper cover assembly
2. Rear bumper side bracket assembly [RH]
3. Rear bumper side bracket assembly
...
Rear Bumper beam Assembly
Components and components location
Component Location
1. Rear bumper beam assembly
Repair procedures
Replacement
...
