Kia Rio: Body Electrical System / Rear Glass Defogger

Kia Rio 2017-2020 YB Service Manual / Body Electrical System / Rear Glass Defogger
Components and components location

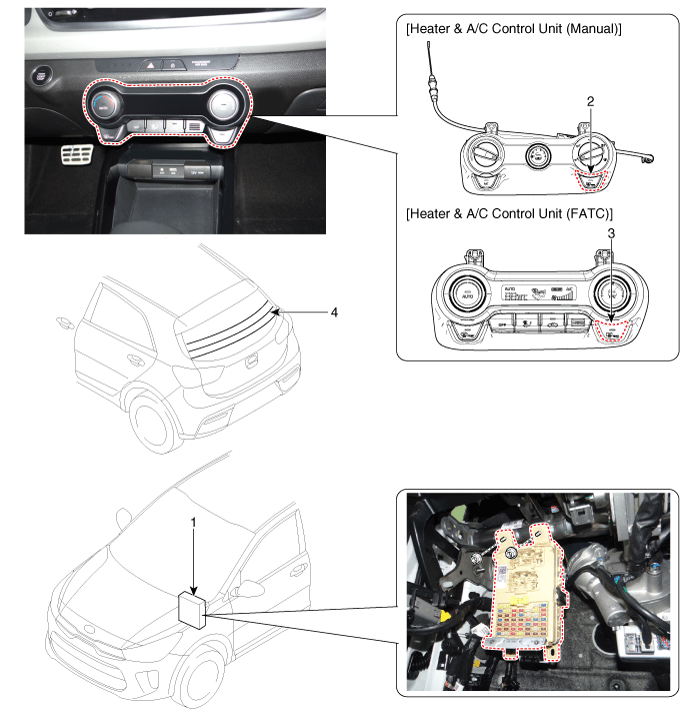

Component Location

1. Rear glass defogger relay
2. Rear glass defogger switch (Manual Type)
3. Rear glass defogger switch (FATC Type)
4. Rear glass defogger

Power Window Switch
Components and components location Components Driver Power Window Switch Connector Pin Information [Front / Rear Driver Safety - Auto Up/Down] [LHD] No ...
Rear Glass Defogger Printed Heater
Repair procedures Inspection    • Wrap tin foil around the end of the voltmeter test lead to p ...
