Kia Rio: Power Windows / Power Window Switch

Kia Rio 2017-2020 YB Service Manual / Body Electrical System / Power Windows / Power Window Switch
Components and components location
Components
Driver Power Window Switch

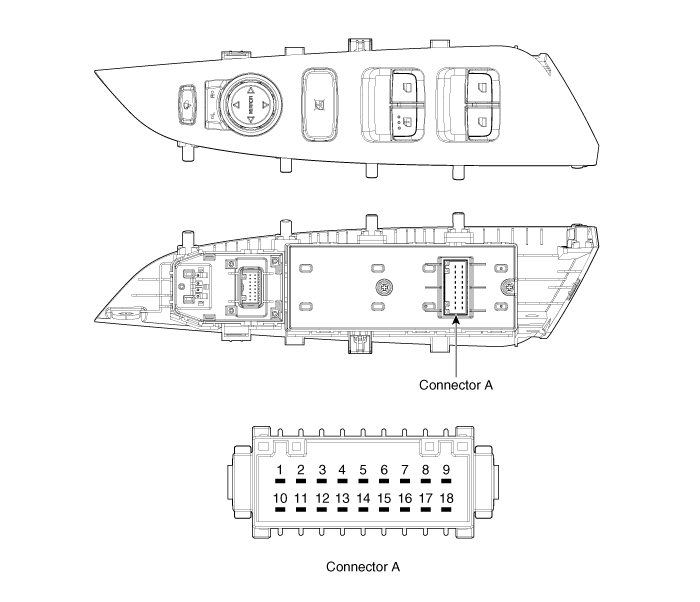

Connector Pin Information

[Front / Rear Driver Safety - Auto Up/Down]

[LHD]

No.
Description
No.
Description
1
Front right power window (Up)
10
Rear right power window (Up)
2
-
11
Rear right power window (Down)
3
Front right power window (Down)
12
Battery (+)_RH
4
-
13
Tail lamp
5
Left window lock switch
14
Right window lock switch
6
Driver main power window (Up/Down)
15
Rear left power window (Up)
7
-
16
Rear left power window (Down)
8
Ground
17
-
9
-
18
Battery (+)_LH

[RHD]

No.
Description
No.
Description
1
-
10
Rear right power window (Up)
2
-
11
Rear right power window (Down)
3
-
12
Battery (+)_RH
4
-
13
Tail lamp
5
Left window lock switch
14
Right window lock switch
6
Driver main power window (Up/Down)
15
Rear left power window (Up)
7
Front left power window (Up)
16
Rear left power window (Down)
8
Ground
17
-
9
Front left power window (Down)
18
Battery (+)_LH

[Front Driver Safety - Auto Up/Down]

[LHD]

No.
Description
No.
Description
1
Front right power window (Up)
10
-
2
-
11
-
3
Front right power window (Down)
12
Battery (+)_RH
4
-
13
Tail lamp
5
-
14
-
6
Driver main power window (Up/Down)
15
-
7
-
16
-
8
Ground
17
-
9
-
18
-

[RHD]

No.
Description
No.
Description
1
-
10
-
2
-
11
-
3
-
12
-
4
-
13
Tail lamp
5
-
14
-
6
Driver main power window (Up/Down)
15
-
7
Front left power window (Up)
16
-
8
Ground
17
-
9
Front left power window (Down)
18
Battery (+)_LH

[Front / Rear Auto Down]

[LHD]

No.
Description
No.
Description
1
Front right power window (Up)
10
Rear right power window (Up)
2
-
11
Rear right power window (Down)
3
Front right power window (Down)
12
Battery (+)_RH
4
-
13
Tail lamp
5
Left window lock switch
14
Right window lock switch
6
-
15
Rear left power window (Up)
7
Front left power window (Up)
16
Rear left power window (Down)
8
Ground
17
-
9
Front left power window (Down)
18
Battery (+)_LH

[RHD]

No.
Description
No.
Description
1
Front right power window (Up)
10
Rear right power window (Up)
2
-
11
Rear right power window (Down)
3
Front right power window (Down)
12
Battery (+)_RH
4
-
13
Tail lamp
5
Left window lock switch
14
Right window lock switch
6
-
15
Rear left power window (Up)
7
Front left power window (Up)
16
Rear left power window (Down)
8
Ground
17
-
9
Front left power window (Down)
18
Battery (+)_LH

[Front Auto Down]

[LHD]

No.
Description
No.
Description
1
Front right power window (Up)
10
-
2
-
11
-
3
Front right power window (Down)
12
Battery (+)_RH
4
-
13
Tail lamp
5
-
14
-
6
-
15
-
7
Front left power window (Up)
16
-
8
Ground
17
-
9
Front left power window (Down)
18
Battery (+)_LH

[RHD]

No.
Description
No.
Description
1
Front right power window (Up)
10
-
2
-
11
-
3
Front right power window (Down)
12
Battery (+)_RH
4
-
13
Tail lamp
5
-
14
-
6
-
15
-
7
Front left power window (Up)
16
-
8
Ground
17
-
9
Front left power window (Down)
18
Battery (+)_LH

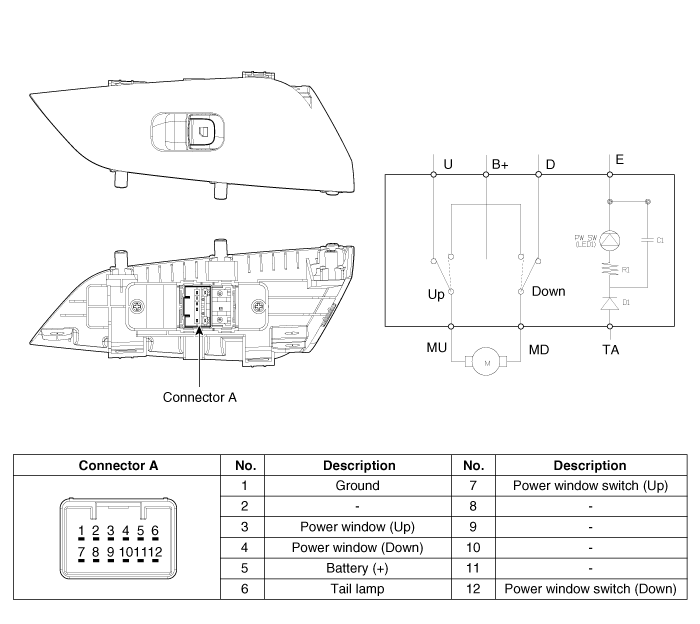

Assist Power Window Switch

Rear Power Window Switch

Repair procedures
Removal


When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.

Be careful to store and handle the trim when removing/installing because lubricant and oil can leave a stain on the trim.

Driver Power Window Switch

1.

Disconnect the negative (-) battery terminal.

2.

Remove the front left door trim.

(Refer to Body - "Front Door Trim")

3.

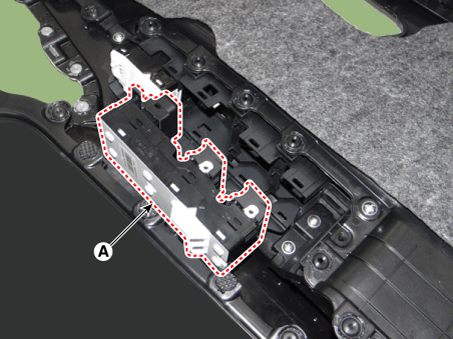

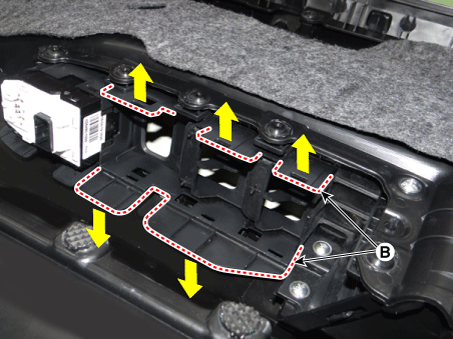

Remove the power window switch assembly (A) by pulling out both ends of the switch holders (B).

Assist Power Window Switch

1.

Disconnect the negative (-) battery terminal.

2.

Remove the front right door trim.

(Refer to Body - "Front Door Trim")

3.

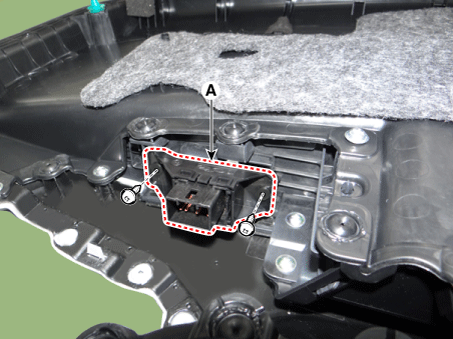

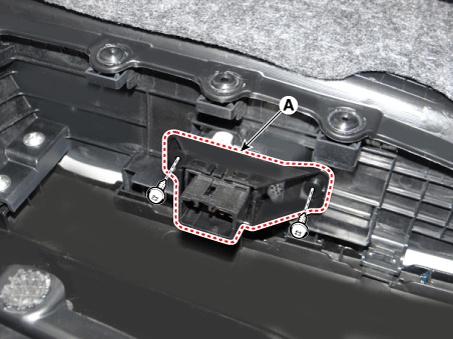

Remove the power window switch assembly (A) after loosening the mounting screws.

Rear Power Window Switch

1.

Disconnect the negative (-) battery terminal.

2.

Remove the rear door trim.

(Refer to Body - "Rear Door Trim")

3.

Remove the power window switch assembly (A) after loosening the mounting screws.

Installation

Driver Power Window Switch

1.

Install the driver power window switch.

2.

Install the front door trim after connecting the connector.

3.

Connect the negative (-) battery terminal.

Assist Power Window Switch

1.

Install the assist power window switch.

2.

Install the front door trim after connecting the connector.

3.

Connect the negative (-) battery terminal.

Rear Power Window Switch

1.

Install the rear power window switch.

2.

Install the rear door trim after connecting the connector.

3.

Connect the negative (-) battery terminal.

Inspection

Driver Power Window Switch

1.

Disconnect the negative (-) battery terminal.

2.

Remove the front left door trim.

3.

Disconnect the power window switch connector from the door trim.

4.

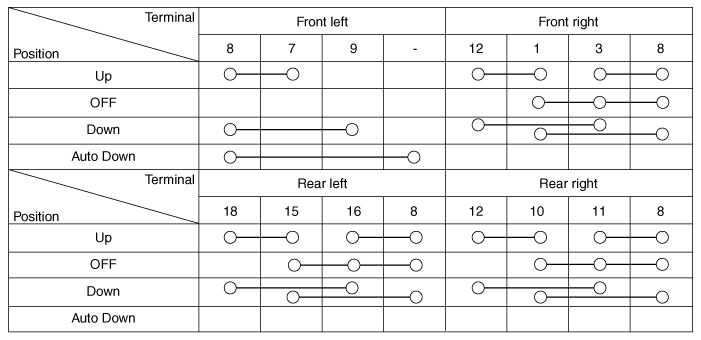

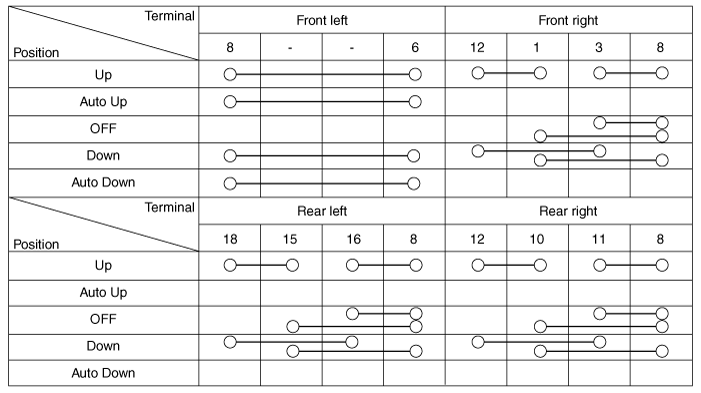

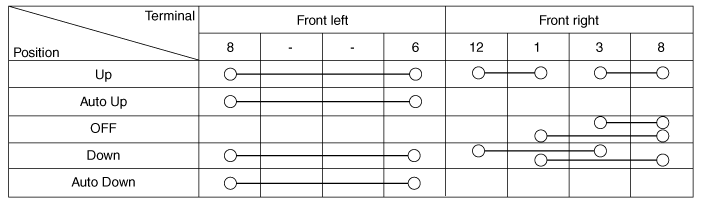

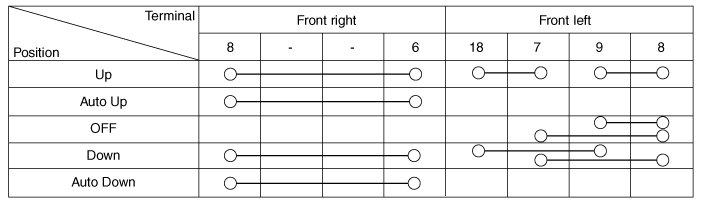

Check for continuity between the terminals in each switch position according to the table. If the continuity condition is not normal, replace the switch.

[Front / Rear Driver Safety - Auto Up/Down]

(LHD)

(RHD)

[Front Driver Safety - Auto Up/Down]

(LHD)

(RHD)

[Front / Rear Auto Down]

(LHD)

(RHD)

[Front Auto Down]

(LHD)

(RHD)

Assist / Rear Power Window Switch

1.

Disconnect the negative (-) battery terminal.

2.

Remove the front right door trim.

(Refer to Body - "Front Door Trim")

(Refer to Body - "Rear Door Trim")

3.

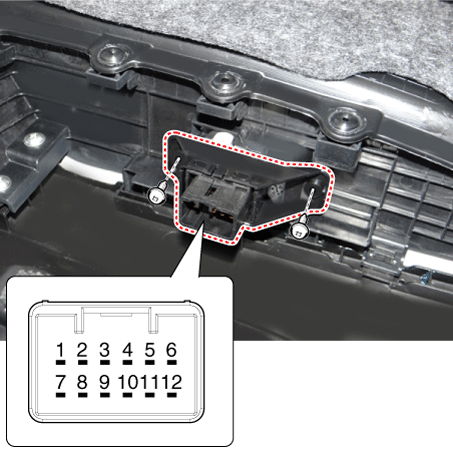

Disconnect the power window switch connector from the door trim.

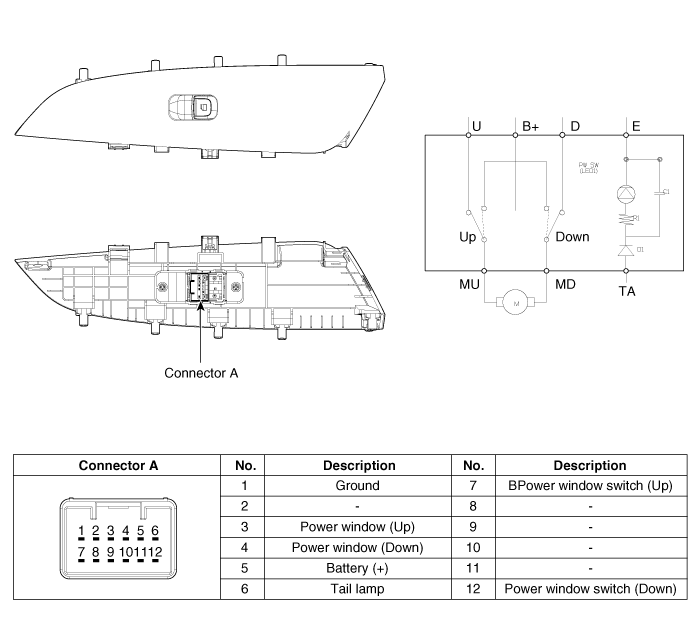

[Assist power window switch]

[Rear Power Window Switch]

4.

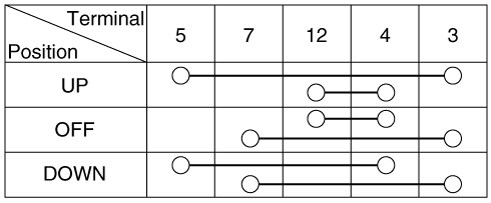

Check for continuity between the terminals in each switch position according to the table. If the continuity condition is not normal, replace the switch.

Diagnosis With KDS/GDS

1.

The body electrical system can be quickly diagnosed for failed parts by using vehicle diagnostic system (KDS/GDS).

The diagnostic system (KDS/GDS) provides the following information.

(1)

Self diagnosis : Checks and displays the failure code (DTC)

(2)

Current data : Checks the system input/output data state

(3)

Actuation test : Checks the system operating condition

(4)

Additional function : Other controls such as the system option and zero point

2.

Select the 'Car model' and the system to be checked in order to check the vehicle with the tester.

3.

Select the 'Body Control Module (BCM)' to check the Body Control Module (BCM).

4.

Select the "Current Data" menu to search the current state of the input/output data.

The input/output data for the sensors corresponding to the door lock switch can be checked.

5.

If you will check the power door lock operation forcefully, select "Actuation test" of BCM.
