Kia Rio: Tailgate / Tailgate Latch

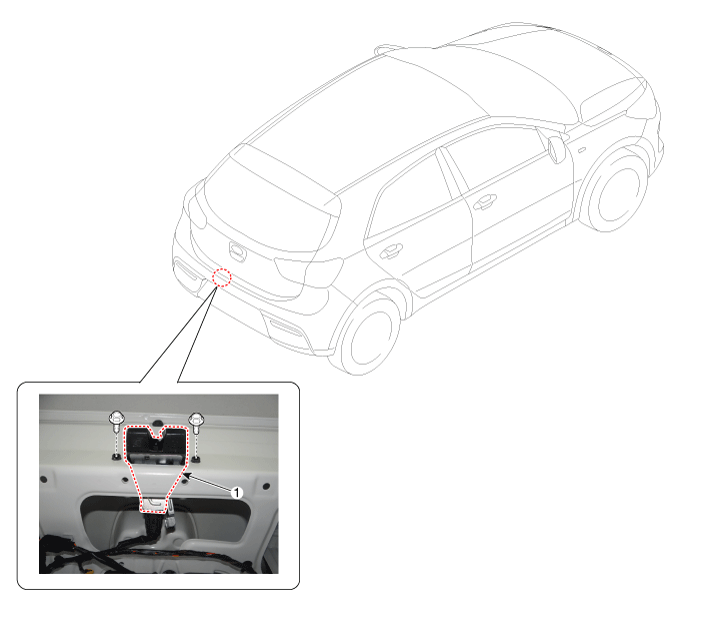

Components and components location
Repair procedures
(5Door)
|
Put on gloves to protect your hands.
|
| • |
Use a plastic panel removal tool to remove interior trim pieces
without marring the surface.
|
| • |
Take care not to bend or scratch the trim and panels.
|
|
| 1. |
Remove the Tailgate trim.
(Refer to Tailgate - "Tailgate Trim")
|
| 2. |

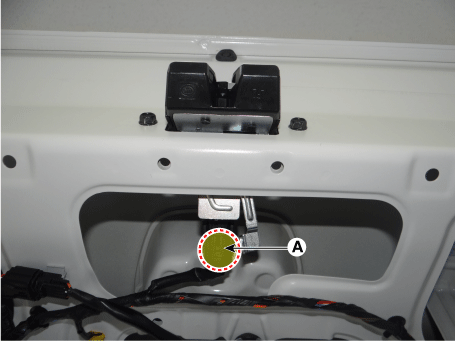

Disconnect the Tailgate latch connector (A).
|
| 3. |

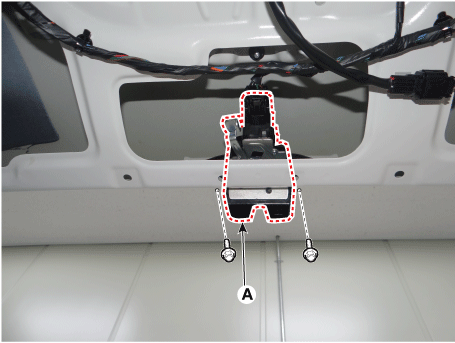

Remove the Tailgate latch assembly (B) after loosening the mounting bolts
(A).
|
Tightening torque :
6.9 - 10.8 N·m (0.7 - 1.1 kgf·m, 5.1 - 8.0 lb·ft)
|
|
| 4. |
Install in the reverse order of removal.
| •
|
Make sure the Tailgate locks/unlocks and opens/closes
properly.
|
| •
|
Adjust the Tailgate alignment.
|
| •
|
Make sure the connectors are connected in properly.
|
|
|
