Kia Rio: Tailgate / Tailgate Trim
Components and components location
Repair procedures
|
Put on gloves to protect your hands.
|
| • |
Use a plastic panel removal tool to remove interior trim pieces
without marring the surface.
|
| • |
Take care not to bend or scratch the trim and panels.
|
|
| 1. |

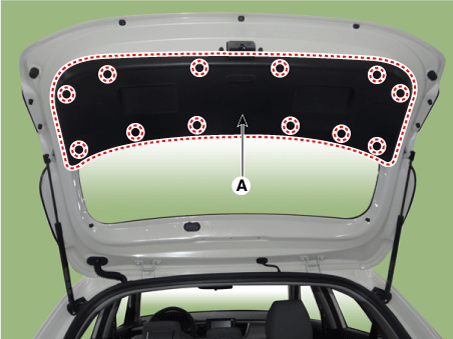

Remove the tailgate trim (A) by using the remover.
|
| 2. |
Install in the reverse order of removal.
| •
|
Replace any damaged clips.
|
|
|
Components and components location

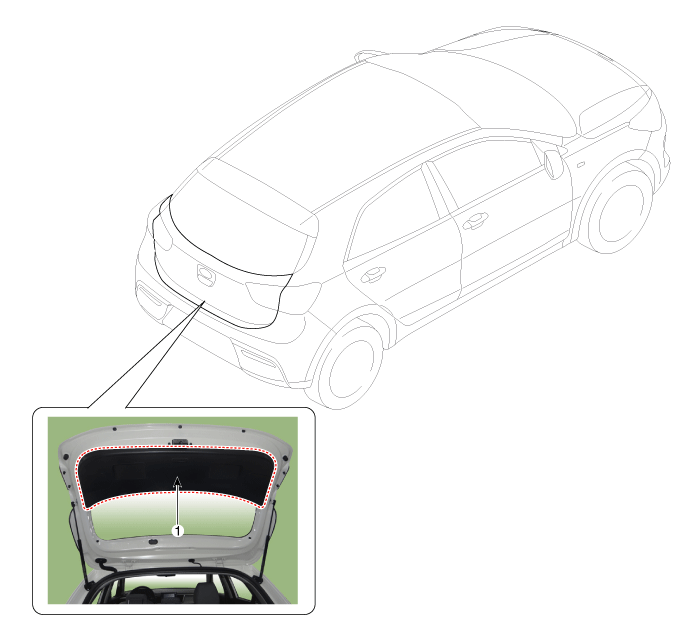

Component Location
1. Tailgate assembly
Repair procedures
Replacement
...
Components and components location
Component Location
(5Door)
1. Tailgate Latch
Repair procedures
Replacement
(5Door)
...
