Kia Rio: Interior Trim / Rear Package Tray Trim

Kia Rio 2017-2020 YB Service Manual / Body (Interior and Exterior) / Interior Trim / Rear Package Tray Trim

Components and components location

Component Location

1. Package tray trim

Repair procedures

Replacement

Put on gloves to protect your hands.

•	Use a plastic panel removal tool to remove interior trim pieces without marring the surface.

•	Take care not to bend or scratch the trim and panels.

1.	Remove the rear seat assembly. (Refer to Rear Seat - "Rear Seat Assembly")

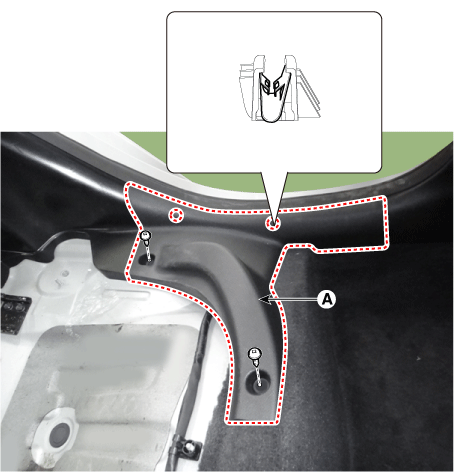

2.	Remove the rear pillar trim (A) by using a remover.

3.	Remove the rear door scuff trim.

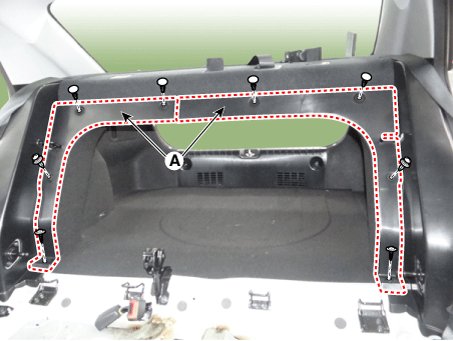

4.	Remove the rear partition trim (A) after looseing the mountin screw.

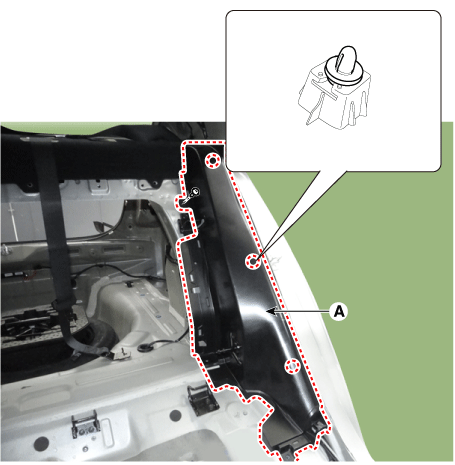

5.	Remove the rear wheel house trim (A) after looseing the mountin screw.

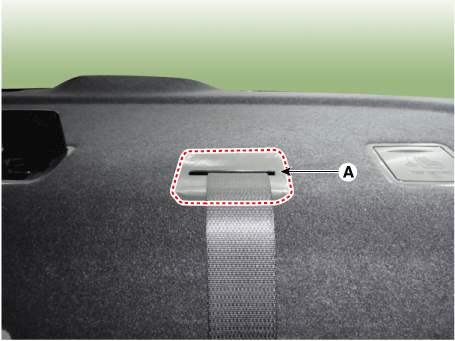

6.	Remove the rear center seat belt cover (A).

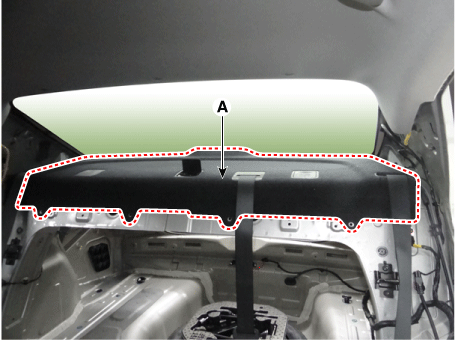

7.	Remove the rear package tray trim (A).

Install in the reverse order of removal.

•	Make sure that the connector is connected properly.

•	Replace any damage clips.
