Kia Rio: If you have a flat tire (with spare tire) / Removing and storing the spare tire
Kia Rio 2017-2020 YB Owners Manual / What to do in an emergency / If you have a flat tire (with spare tire) / Removing and storing the spare tire

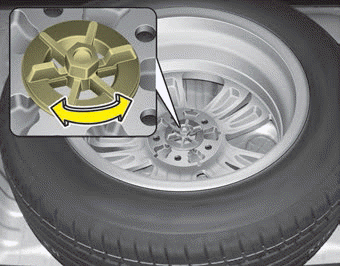

Turn the tire hold-down wing bolt counterclockwise to remove the spare tire.
Store the tire in the reverse order of removal.
To prevent the spare tire and tools from “rattling” while the vehicle is in motion, store them properly.

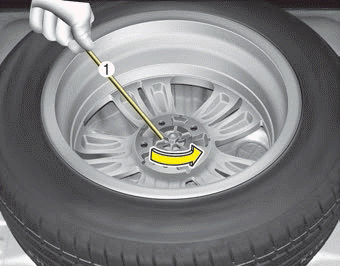

If it is hard to loosen the tire holddown wing bolt by hand, you can loosen it easily using the jack handle.
1. Put the jack handle (1) inside of the tire hold-down wing bolt.
2. Turn the tire hold-down wing bolt counterclockwise with the jack handle.
Jack and tools
■ 4 door
■ 5 door
The spare tire, jack, jack handle and wheel lug nut wrench are stored in the
luggage compartment.
Remove the luggage under tray out of the way to reach the equipment.
( ...
Changing tires
1. Park on a level surface and apply the parking brake firmly.
2. Shift the shift lever into R (Reverse) for Manual Transmission or P (Park)
for Intelligent Variable Transmission.
3. Activate th ...
