Kia Rio: Engine Electrical System / Starting System
Kia Rio 2017-2020 YB Service Manual / Engine Electrical System / Starting System
Description and operation
| Description |
The starting system includes the battery, starter, solenoid switch, ignition switch, inhibitor switch (A/T), clutch pedal switch (M/T), ignition lock switch, connection wires and the battery cable.
When the ignition key is turned to the start position, current flows and energizes the starter motor's solenoid coil.
The solenoid plunger and clutch shift lever are activated, and the clutch pinion engages the ring gear.
The contacts close and the starter motor cranks.
In order to prevent damage caused by excessive rotation of the starter armature when the engine starts, the clutch pinion gear overruns.

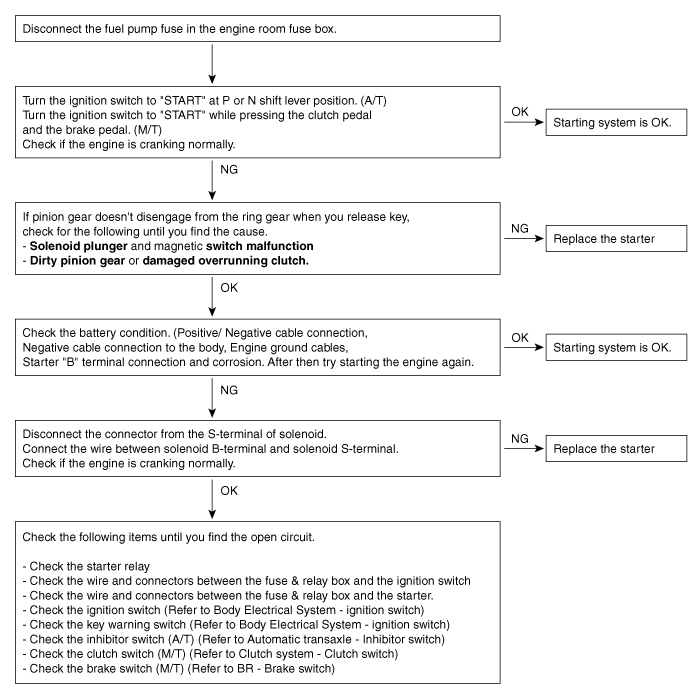

Troubleshooting
| Troubleshooting |
|
Symptom |
Suspect Area |
Remedy |
|
Engine will not crank |
Battery charge low |
Charge or replace battery |
|
Battery cables loose, corroded or worn out |
Repair or replace cables |
|
|
Inhibitor switch [AT Type only] |
Refer to Automatic Transaxle System - "Inhibitor switch" |
|
|
Inhibitor switch [DCT Type only] |
Refer to Daul Clutch Transmission System - "Inhibitor switch" |
|
|
Clutch Switch [MT Type only] |
Refer to Clutch System - "Clutch Switch" |
|
|
Fuse blown |
Replace fuse |
|
|
Starter motor faulty |
Replace |
|
|
Ignition switch faulty |
Replace |
|
|
Engine cranks slowly |
Battery charge low |
Charge or replace battery |
|
Battery cables loose, corroded or worn out |
Repair or replace cables |
|
|
Starter motor faulty |
Replace |
|
|
Starter keeps running |
Starter motor faulty |
Replace |
|
Ignition switch |
Replace |
|
|
Starter spins but engine will not crank |
Short in wiring |
Repair or replace wiring |
|
Pinion gear teeth broken or starter motor |
Replace |
|
|
Ring gear teeth broken |
Replace fly wheel or torque converter |
|
Spark Plug
Specifications
Specification
Item
Specification
Type
SILKR6C10E
Gap
0.9 - 1.0 mm
(0.0354 - 0.0394 ...
Starter
Specifications
Specification
▷12V, 1.2kW : ISG only
Item
Specification
Rated voltage
12 V, 1.2 kW
The number ...
