Kia Rio: Trunk Lid / Trunk Lid Trim

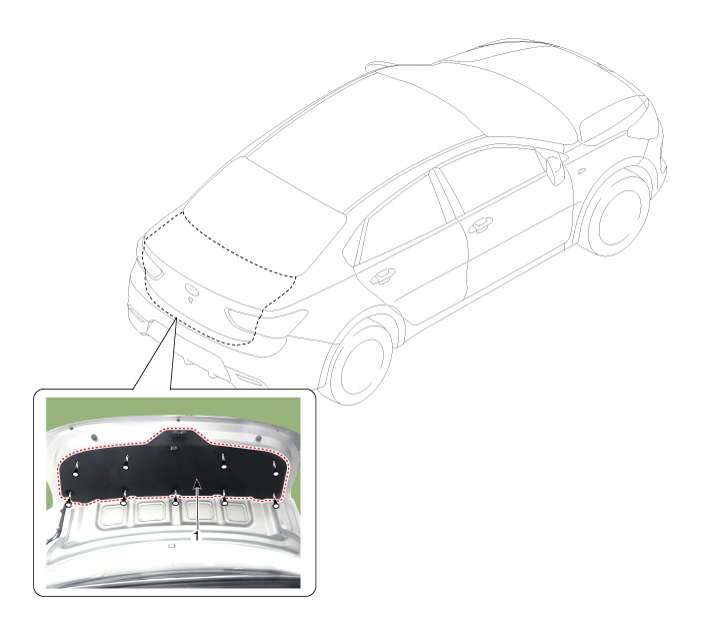

Components and components location
Repair procedures
| • |
Put on gloves to protect your hands.
|
|
| • |
When prying with a flat-tip screwdriver, wrap it with protective
tape, and apply protective tape around the related parts, to prevent
damage.
|
| • |
Take care not to scratch the body surface.
|
|
| 1. |
Detach the clips, then remove the trunk lid trim (A).
|
| 2. |
Install in the reverse order of removal.
| •
|
Replace any damaged clips.
|
|
|
Components and components location
Component Location
(4Door)
1. Trunk lid assembly
Repair procedures
Replacement
(4Door)
...
Components and components location
Component Location
(5Door)
1. Tailgate Latch
Repair procedures
Replacement
(5Door)
...
