Kia Rio: Engine Control System / Variable Intake Solenoid (VIS) Valve
Specifications
Item
|
Specification
|
Coil resistance (Ω)
|
30.0 ~ 35.0 [20°C(68°F)]
|
Description and operation

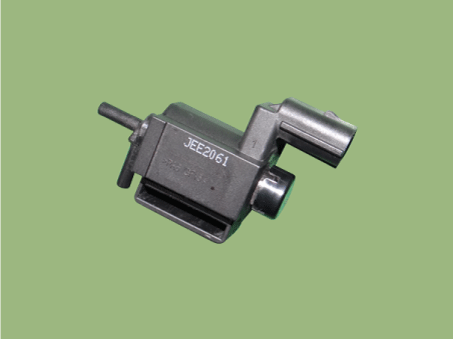

Variable Intake manifold Solenoid (VIS) valve is installed on the intake manifold.
The VIS valve controls the vacuum modulator which activates a valve in the intake
manifold. The ECM opens or closes this valve according to engine condition (Refer
to below table).

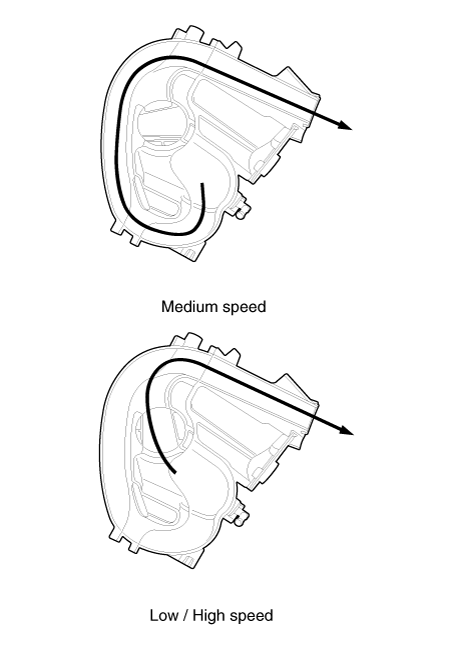

Engine condition
|
VIS valve
|
Operation
|
Medium speed
|
Closed
|
Increasing engine performance in low engine speed by reducing intake interference
among cylinders
|
Low / High speed
|
Open
|
Minimizing intake resistance by shortening intake manifold length and increasing
area of air entrance
|

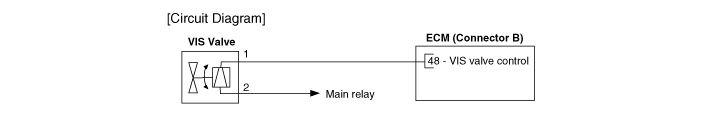

Schematic diagrams
Repair procedures
| 1. |
Turn the ignition switch OFF.
|
| 2. |
Disconnect the VIS valve connector.
|
| 3. |
Measure resistance between VIS valve terminals 1 and 2.
|
Specification : Refer to "Specification"
|
|
| 1. |
Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
|
| 2. |
Remove the air cleaner assembly.
(Refer to Engine Mechanical System - "Air Cleaner")
|
| 3. |
Remove the electronic throttle body control (ETC) module.
(Refer to Engine Control System - "ETC (Electronic throttle body control)
System")
|
| 4. |

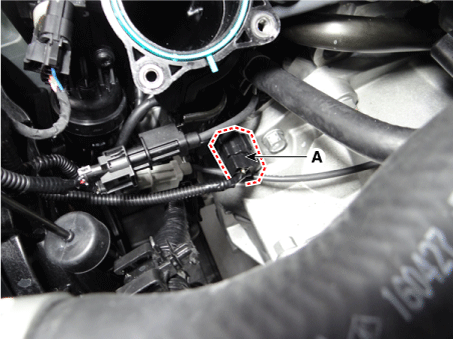

Disconnect the variable intake solenoid valve connector (A).
|
| 5. |

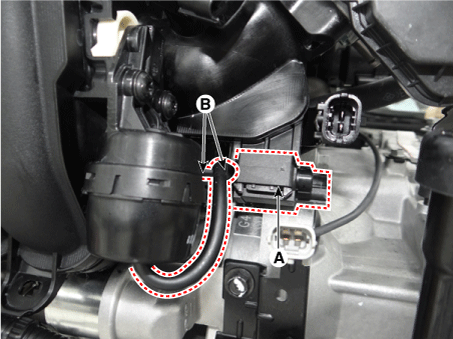

Remove the variable intake solenoid valve (A).
|
| 6. |
Disconnect the vacuum hoses (B) from the valve.
|
| 7. |
Remove the variable intake solenoid valve.
|
| • |
Install the component with the specified torques.
|
| • |
Note that internal damage may occur when the component is dropped.
In this case, use it after inspecting.
|
| • |
Be careful of foreign material not to flow into the valve.
|
|
| 1. |
Installation is reverse of removal.
|
