Kia Rio: Cylinder Block / Water Jacket Insert

Kia Rio 2017-2020 YB Service Manual / Engine Mechanical System / Cylinder Block / Water Jacket Insert

Repair procedures

Remove and Installation

1.	Remove the cylinder head assembly. (Refer to Cylinder Head Assembly - "Cylinder Head")

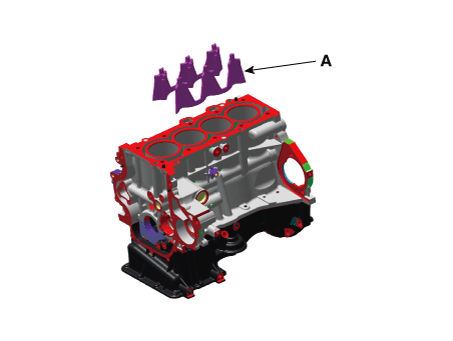

Remove the water jacket insert (A).

Be careful not to deform or damage it when removing.

3.	Install in the reverse order of removal.

Cylinder Block

Components and components location Components 1. Piston ring 2. Piston 3. Piston pin 4. Connecting rod 5. Connecting rod upper bearing 6. Connecting rod ...

Drive Plate

Repair procedures Remove and Installation 1. Remove the automatic transaxle . (Refer to Automatic Transaxle System - "Automatic Transaxle") ...
