Kia Rio: Engine Mechanical System / Cylinder Block
Kia Rio 2017-2020 YB Service Manual / Engine Mechanical System / Cylinder Block
Components and components location

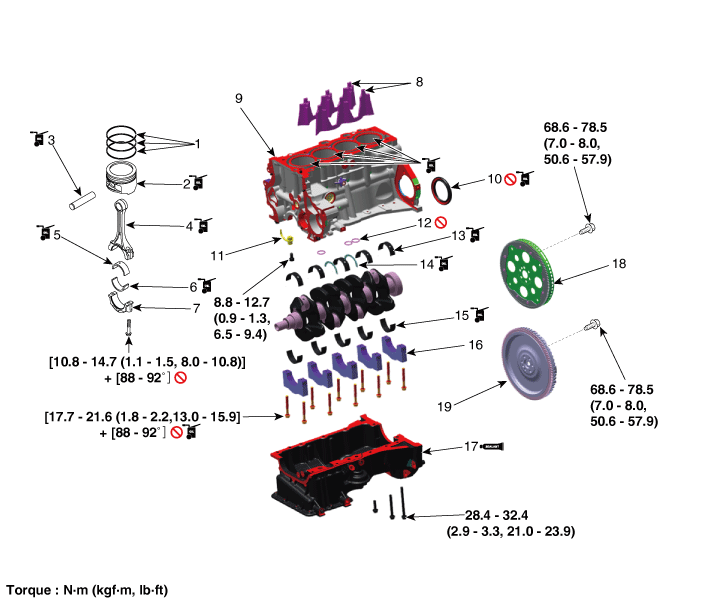

Components |
1. Piston ring 2. Piston 3. Piston pin 4. Connecting rod 5. Connecting rod upper bearing 6. Connecting rod rower bearing 7. Connecting cap 8. Water jacket insert 9. Cylinder block 10. Rear oil seal |
11. Piston cooling jet 12. O-ring 13. Crankshaft upper bearing 14. Thrust bearing 15. Crankshaft lower bearing 16. Main bearing cap 17. Ladder frame 18. Drive plate 19. Flywheel |
- Water Jacket Insert
- Drive Plate
- Fly Wheel
- Rear Oil Seal
- Piston and Connecting Rod
- Crankshaft
- Cylinder Block
