Kia Rio: Tires/Wheels / Wheel
Repair procedures

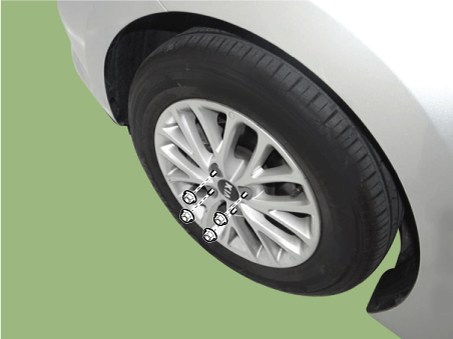

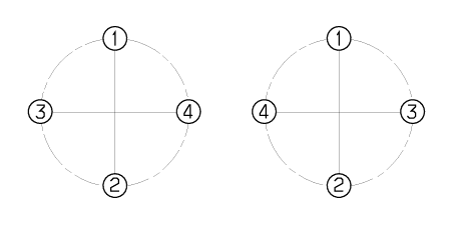

| Hub nut tightening sequence |
Tighten the hub nuts as follows.
|
Tightening torque: 107.9 - 127.5 N·m (11.0 - 13.0 kgf·m, 79.6 - 94.0 lb·ft) |
When using an impact gun, final tightening torque should be checked using a torque wrench. |
Run out inspection
| 1. |
Jack up the vehicle. |
| 2. |

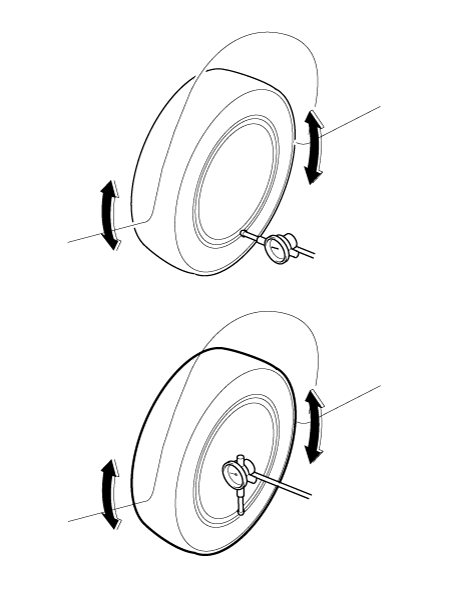

Measure the wheel run-out by using a dial indicator as illustration below.
|
| 3. |
If measured value exceeds the standard value, replace the wheel.
|
