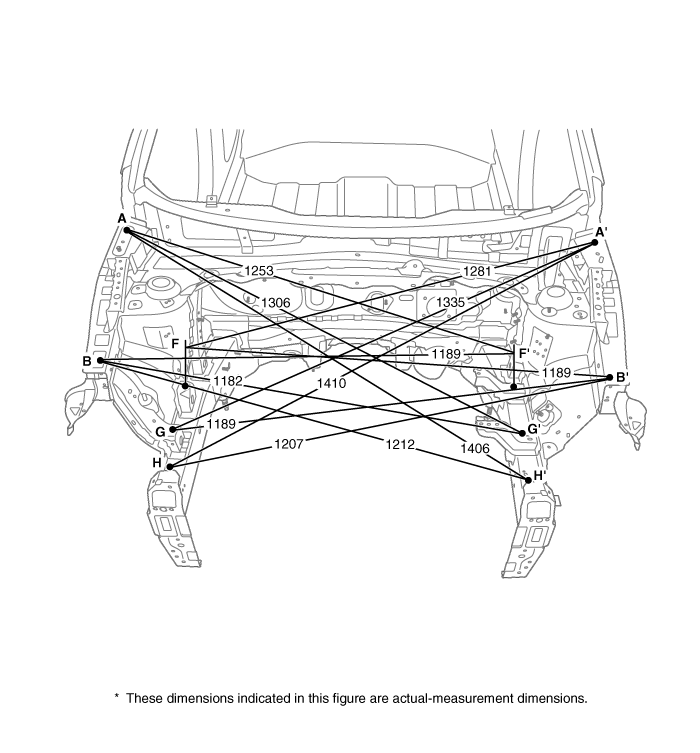

Kia Rio: 4Door Front Body B
|
|
|
|
| Hood hinge mounting hole (Ø11) |
Fender apron upper member tooling hole (Ø6.6) |
Engine mounting hole (Ø11) |
|
|
|
|
| Transaxle mounting hole (Ø12) |
Engine mounting hole (Ø12) |
Transaxle mounting hole (Ø15) |
|
|
|
|
| Front side member tooling hole (Ø9) |
Front side member tooling hole (Ø6.6) |
Front end module mounting hole (Ø9) |
|
|
||
| Front end module mounting hole (Ø9) |
4Door Front Body A
4Door Front Body CESC Control Module Components
1. Front - left tube
2. Rear - right tube
3. Rear - left tube
4. Front - right tube
5. MC2
6. MC1
7. ESC control module (HECU)
8. Damper
9. Bracket
...
Relay Box (Passenger Compartment) Installation
1.
Install the interior junction box.
2.
Install the crash pad lower panel.
3.
Check that all system operates n ...
Removal
1.
Remove the fuel pump.
(Refer to Engine Control/Fuel System - “Fuel Pump”)
2.
Remove the ORVR valve (A) after releasing hooks (B).
...
