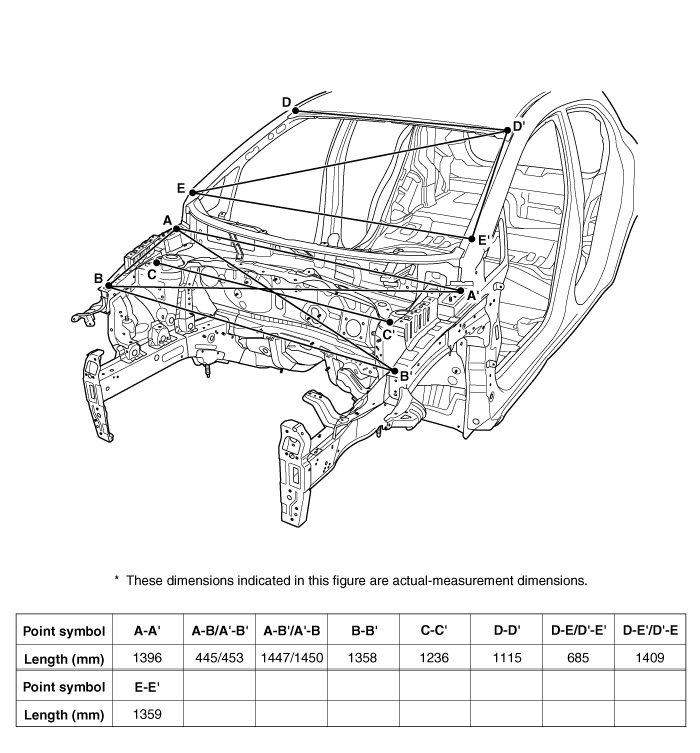

Kia Rio: 5Door Front Body A
|
|
|
|
| Hood hinge mounting hole (Ø11) |
Fender apron upper member tooling hole (Ø6.6) |
Front shock absorber housing cover tooling hole (Ø7) |
|
|
|
|
| Front shock absorber housing cover tooling hole (Ø7) |
Roof panel front corner |
Front pillar outer panel corner |
