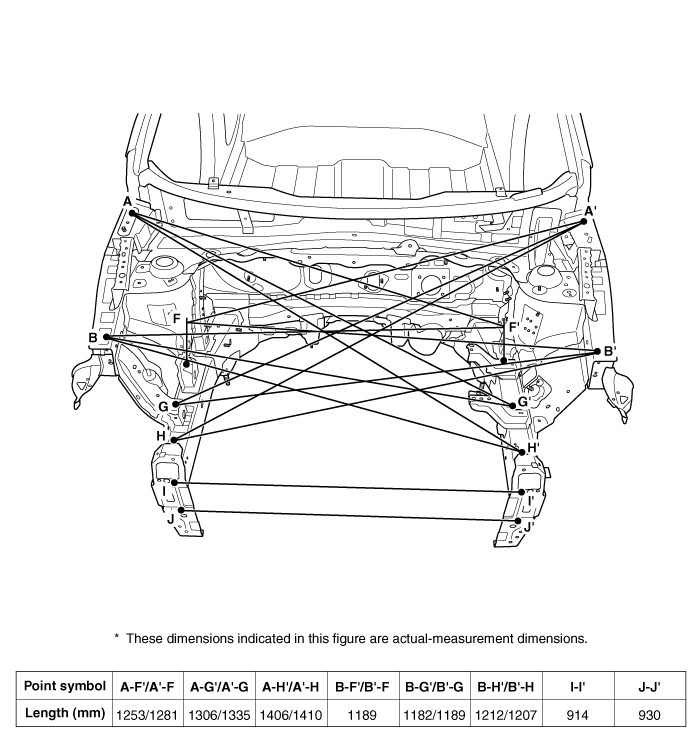

Kia Rio: 5Door Front Body B
|
|
|
|
| Hood hinge mounting hole (Ø11) |
Fender apron upper member tooling hole (Ø6.6) |
Engine mounting hole (Ø12) |
|
|
|
|
| Transaxle mounting hole (Ø12) |
Engine mounting hole (Ø15) |
Transaxle mounting hole (Ø15) |
|
|
|
|
| Front side member tooling hole (Ø9) |
Front side member tooling hole (Ø6.6) |
Front end module mounting hole (Ø9) |
|
|
||
| Front end module mounting hole (Ø9) |
