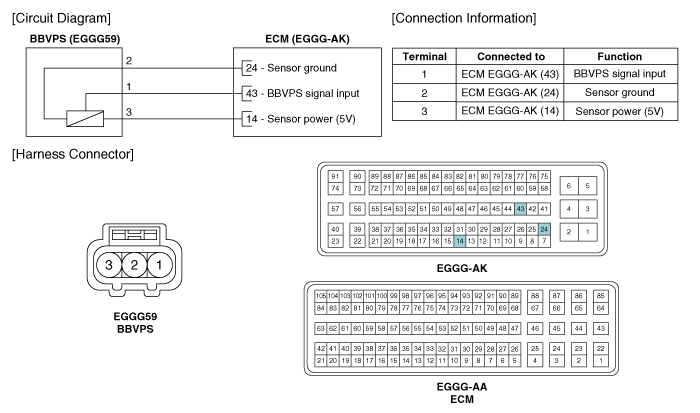

Kia Rio: Brake Booster Vacuum Pressure Sensor: Circuit Diagram

Brake Booster Vacuum Pressure Sensor: Description

In order to ensure adequate brake power assistance in every situation, the brake booster is equipped with a partial vacuum sensor. The brake booster vacuum pressure sensor is located beside t ...

Brake Booster Vacuum Pressure Sensor: Inspection

1. Check installation status of BBVPS and Vacuum hose or damage of vacuum hose. 2. Connect GDS to DLC (Data Link Cable). ...

See also:

Specifications
Item Specification Power source DC 14.4V (-) ground Frequency range / Channel space FM : 87.5 ~ 107.9 MHz / 200 K AM : 530 ~ 1710 KHz / 10 K ...

Brake Booster Operating Test
For simple checking of the brake booster operation, carry out the following tests. 1. Run the engine for one or two minutes, and then stop it. If the pedal depresses ...

Signal Waveform
...
