Kia Rio: Circuit Diagram

Component Location

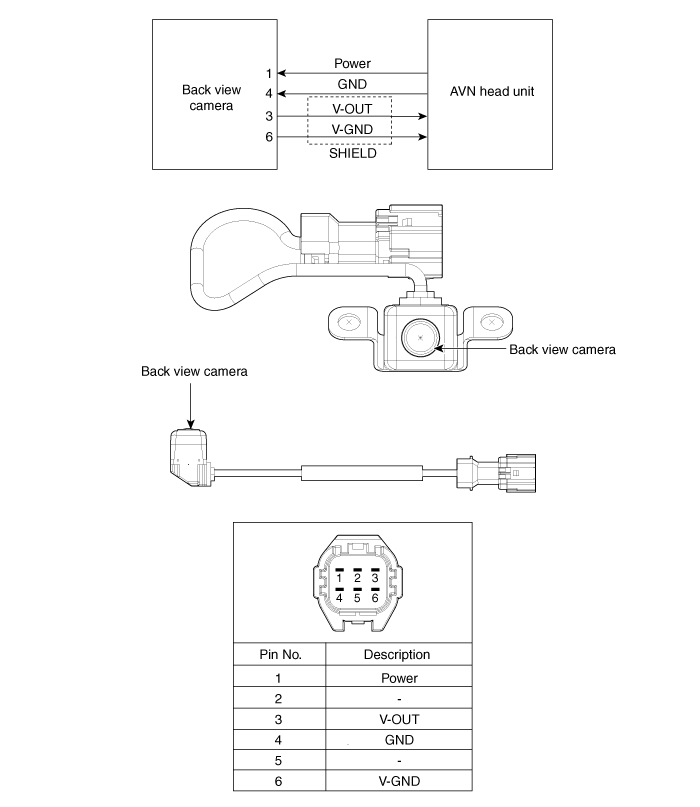

1. Back view camera 2. AVN (AV & Navigation) head unit ...

Description

Back view camera will activate when the backup light is ON with the ignition switch ON and the shift lever in the R position. This system is a supplemental system that shows behind the vehic ...
