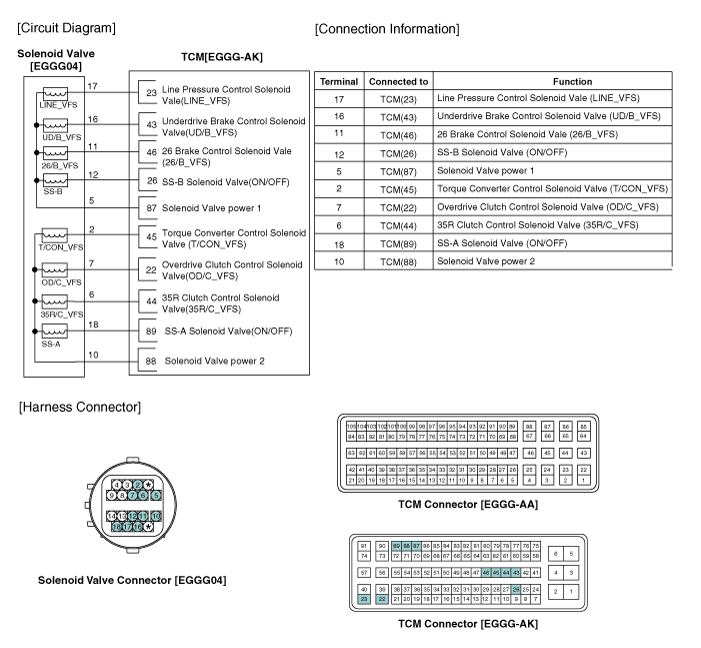

Kia Rio: Torque Converter Control Solenoid Valve (T/CON_VFS) Circuit Diagram

Torque Converter Control Solenoid Valve (T/CON_VFS) Specifications

Direct control VFS[T/CON] ▷ Control type : Normal low type Control Pressure kpa (kgf/cm², psi) 9.81 ~ 500.14 (0.1 ~ 5.1,1.42 ~ 72.54) Current value(mA ...

Torque Converter Control Solenoid Valve (T/CON_VFS) Inspection

1. Turn ignition switch OFF. 2. Disconnect the solenoid valve connector. 3. Measure resistance between sensor ...
