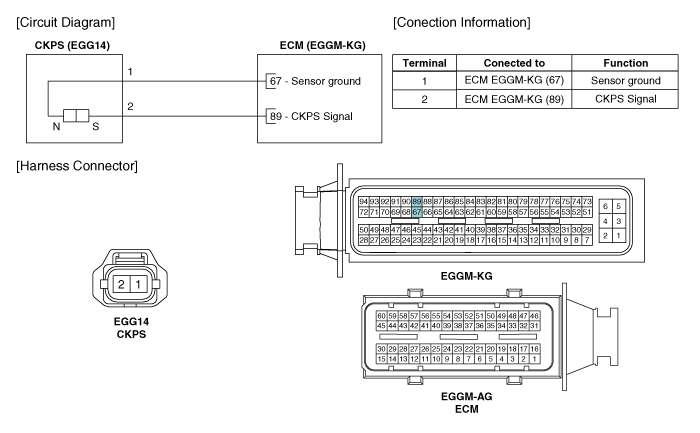

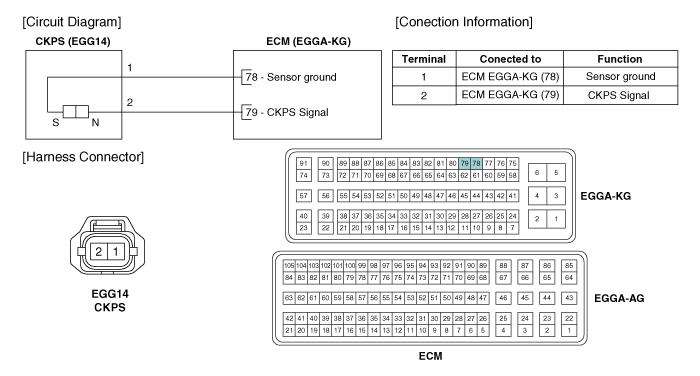

Kia Rio: Circuit Diagram

Waveform

This example shows a typical Crankshaft Position Sensor(CkPS) and Camshaft Position Sensor(CMPS) waveform at idle.The PCM controls the injection and ignition timing by using these sig ...

Inspection

1. Check signal waveform of CKPS and CMPS using a GDS. Specification: Refer to “Waveform” ...
