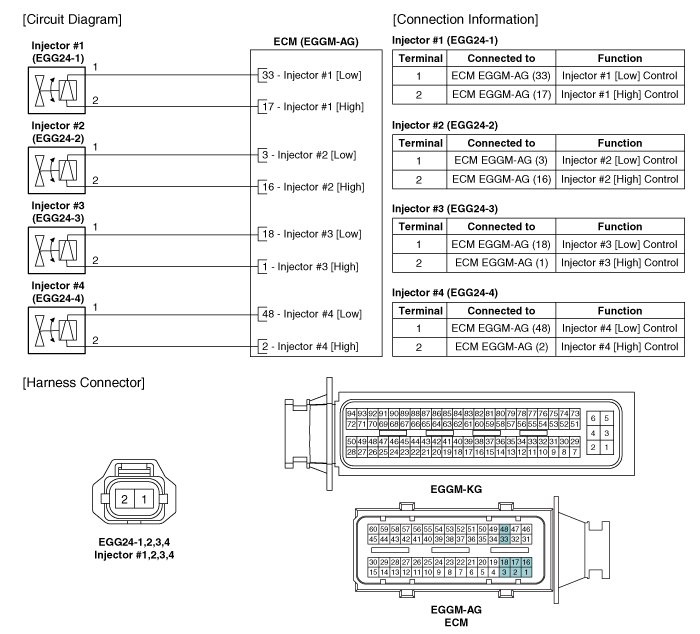

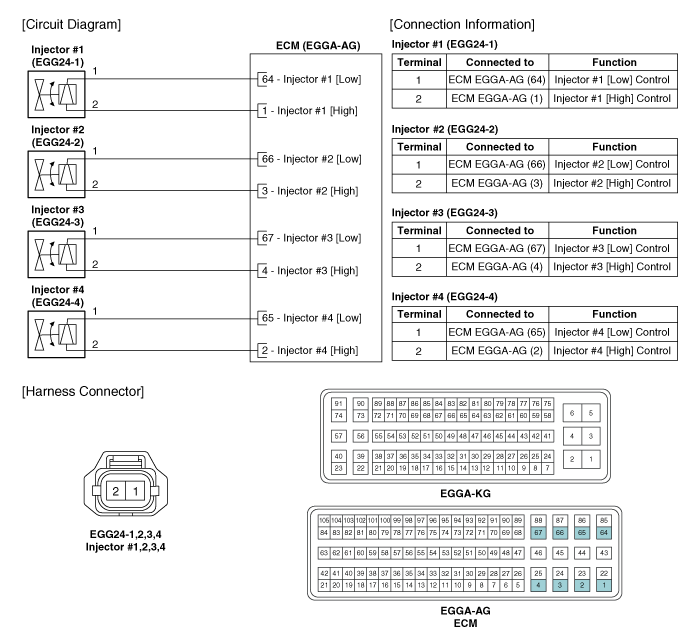

Kia Rio: Circuit Diagram

Signal Waveform

The three waveforms below are taken from the #1 and #4 injectors. The top waveform is from the high side (feed side) of the #1 and #4 injectors, while the middle waveform is from the low side ...

Inspection

1. Turn the ignition switch OFF. 2. Disconnect the injector connector. 3. Measure resistance between the inject ...
