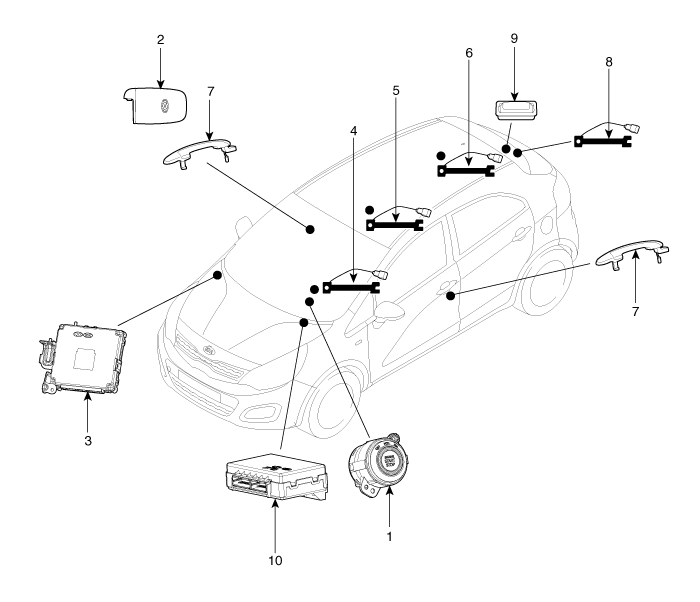

Kia Rio: Component Location - Button Engine Start System - Body Electrical System - Kia Rio UB 2012-2020 Service ManualKia Rio: Component Location


1. Start Stop Button(SSB)
2. FOB key
3. Smart key unit
4. Interior antenna 1
5. Interior antenna 2
6. Trunk antenna
7. Door handle & door antenna
8. Bumper antenna
9. Trunk lid open switch
10. Body control module (BCM)

Button Engine Start System
...
Circuit Diagram (1)
...
