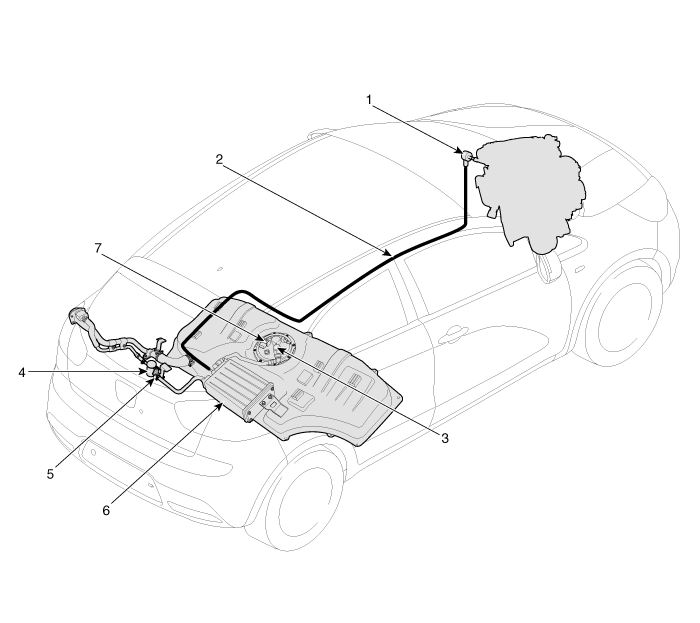

Kia Rio: Components Location

Schematic Diagram

Canister The Canister is filled with charcoal and absorbs evaporated fuel vapor from the fuel tank. The gathered fuel vapor in canister is drawn into the intake manifold by the ECM/PC ...

Inspection

[System Inspection] 1. Disconnect the vapor hose from the intake manifold and connect a vacuum pump to the nipple on the intake manifold. · At Cold Engine [Engi ...
