Kia Rio: Components Location - Hydraulic System - Automatic Transaxle System - Kia Rio UB 2012-2020 Service ManualKia Rio: Components Location

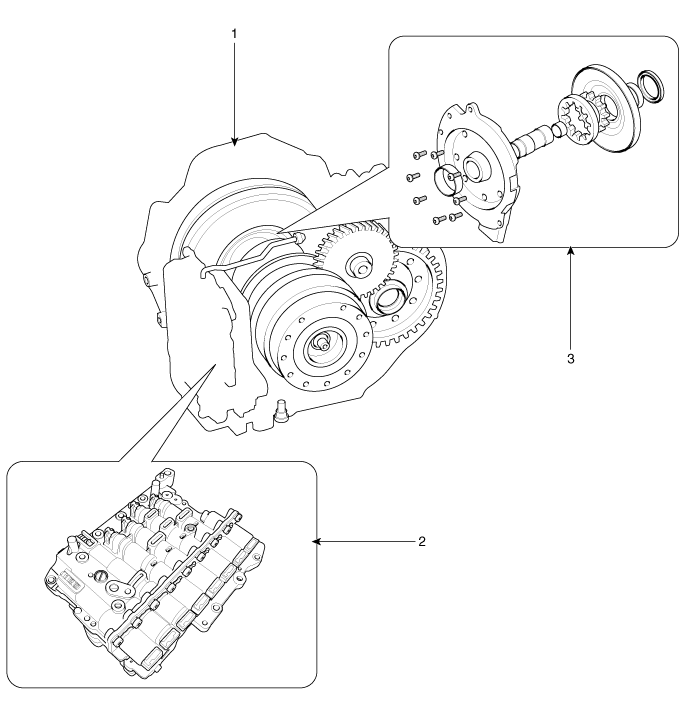

1. Automatic transaxle
2. Valve body assembly
3. Oil pump assembly

Description
The hydraulic system consists of oil, an oil filter, an oil pump, and a valve body (valves and solenoid valves). The oil pump is powered by the engine. ATF passes through the oil filter and g ...
Oil Pump Description
The oil pump is built-in as a single unit with the 26 brake chamber. Rotation of the pump builds the hydraulic pressure needed for the lubrication of the various parts of the transaxle and op ...
