Kia Rio: Components Location

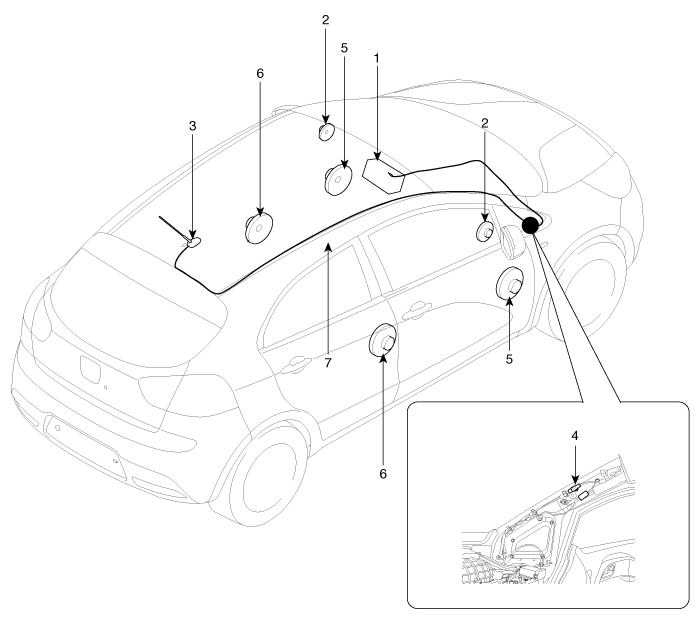

| 1. Audio unit 2. Tweeter speaker 3. Roof antenna (Radio + SDARS) 4. Antenna cable connector |
5. Front door speaker 6. Rear door speaker 7. Antenna feeder cable |
