Kia Rio: TPMS Receiver Diagnosis procedure by using diagnostic device - Tire Pressure Monitoring System - Suspension System - Kia Rio UB 2012-2020 Service ManualKia Rio: TPMS Receiver Diagnosis procedure by using diagnostic device

As manual for diagnosis methods by using diagnosis device, the main contents are as follows:
1.
Connect self-diagnosis connector(16pins) located in the lower of driver side crash pad to self-diagnosis device, and then turn the self-diagnosis device after key is ON.
2.
Select the "vehicle model" and "TPMS" on GDS vehicle selection screen, then select OK.

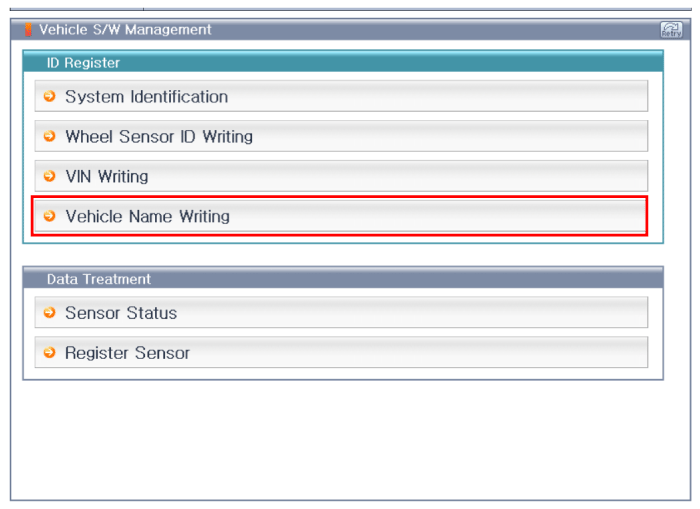

[Vehicle name input initialization]

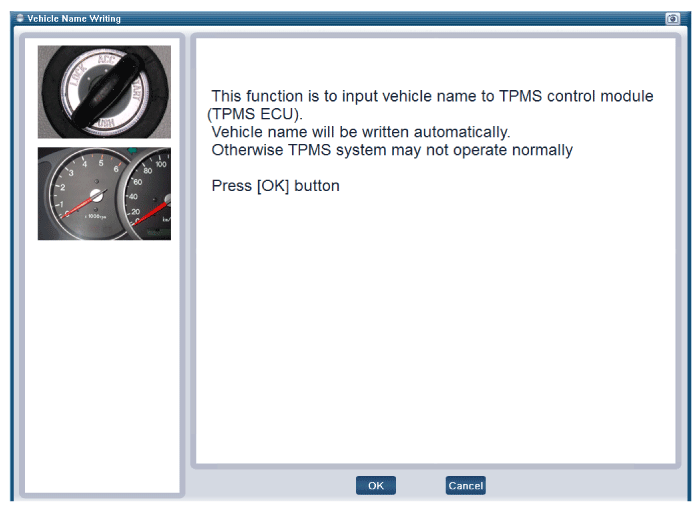

[Vehicle Name Writing 1]

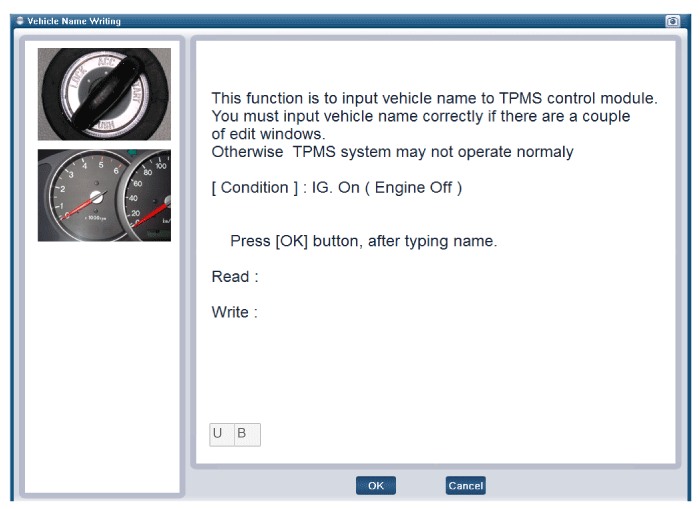

[Vehicle Name Writing 2]




Check the specifications for the vehicle and the selected item option, press the OK button and enter is completed.
When you input the vehicle name, check the tire inch and exactly input inch option to device.

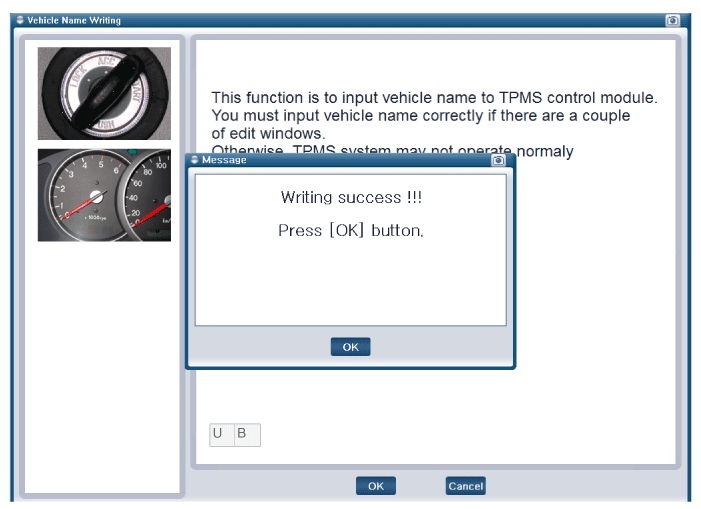

[Vehicle Name Writing 3]

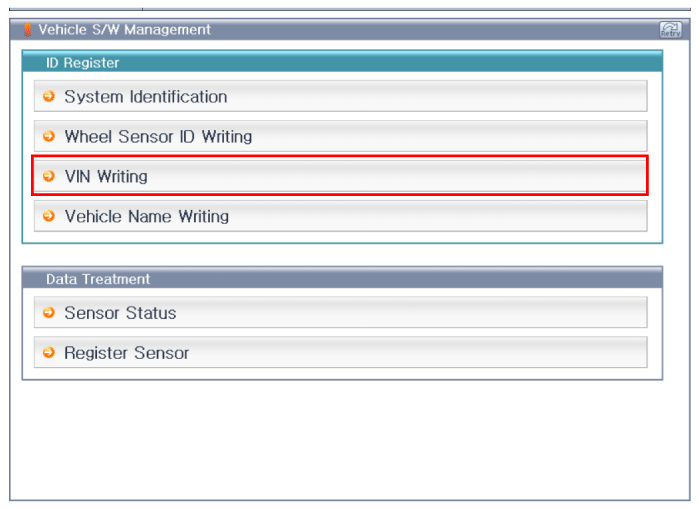

[VIN input initialization]

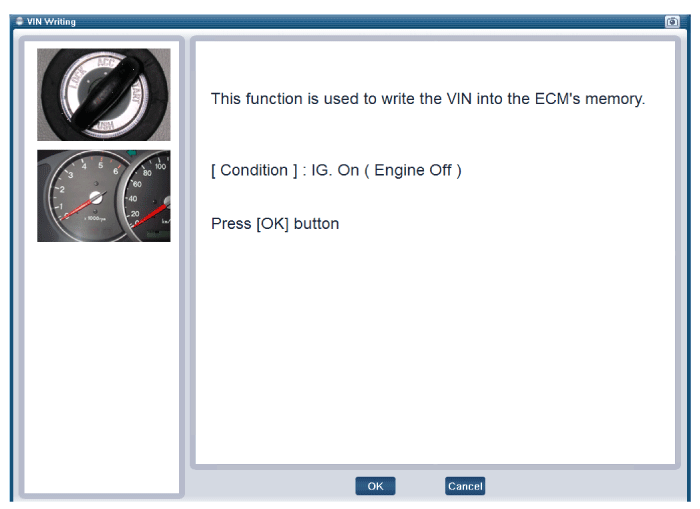

[VIN Writing 1]

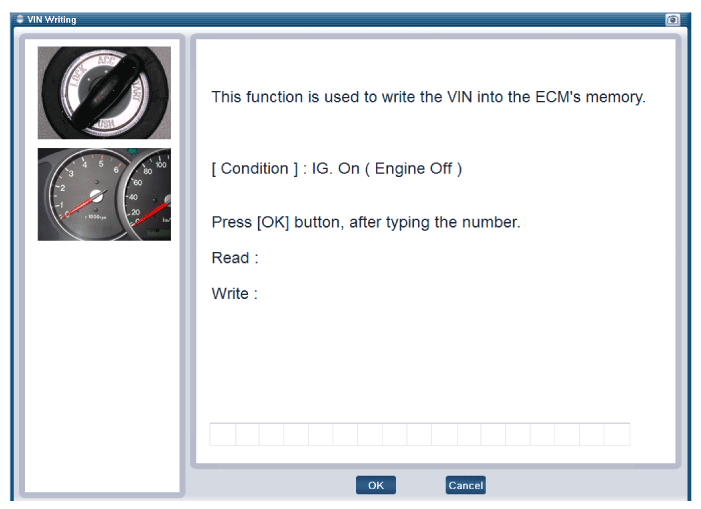

[VIN Writing 2]

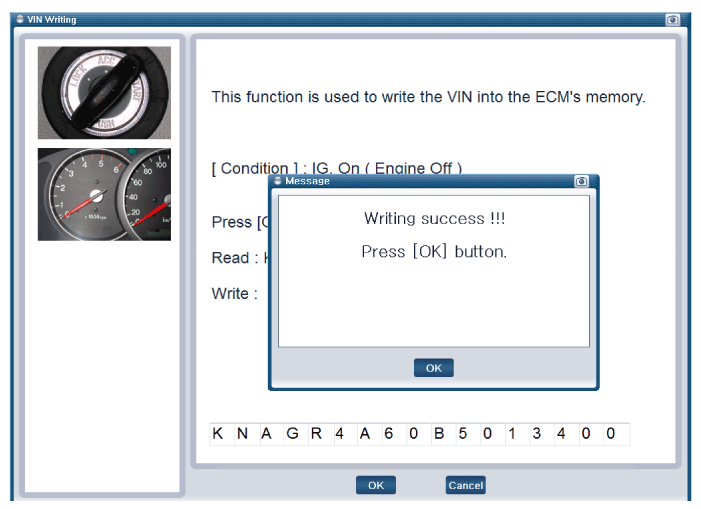

[VIN Writing 3]


TPMS Receiver Replacement
   When the receiver first arrives for replacement: 1) It will be in Virgin State. ...
