Kia Rio: TPMS Receiver Replacement - Tire Pressure Monitoring System - Suspension System - Kia Rio UB 2012-2020 Service ManualKia Rio: TPMS Receiver Replacement



When the receiver first arrives for replacement:
1)
It will be in Virgin State.
2)
It will not be configured for any specific platform.
3)
It will not have any sensor ID's memorized.


It is important to make sure that the correct receiver is used to replace the faulty part i.e. it must be Low Line and not High Line in order to have the correct inflation warning thresholds set.
1.
Disconnect vehicle battery.
2.
Remove the glove box.
(Refer to BD group - "Crash Pad")
3.
Remove the receiver (A) and fit bracket assembly to new part.


4.
Secure new part to vehicle and fit connector.
5.
Re-connect battery and turn Ignition on.
6.
Check that TREAD Lamp flash rate matches Virgin State indication.
7.
After replacing the receiver, learn by using self-diagnosis device(GDS).
[Wheel Sensor ID Writing (Wireless) initialization]

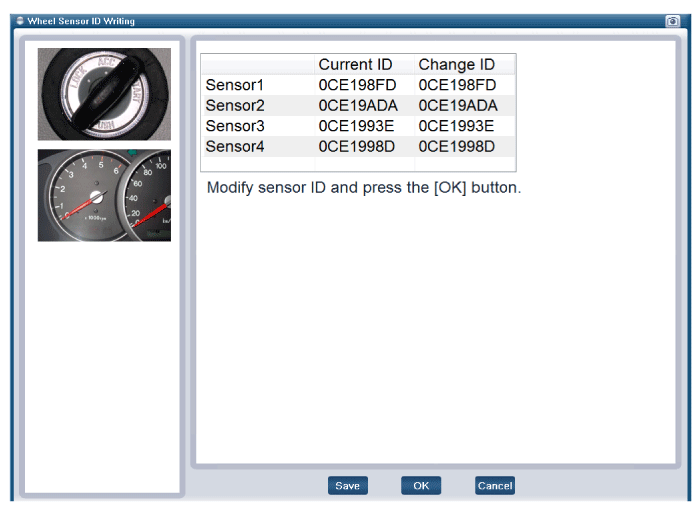

[Wheel Sensor ID Writing (Wireless) 1]


[Wheel Sensor ID Writing (Wireless) 2]
