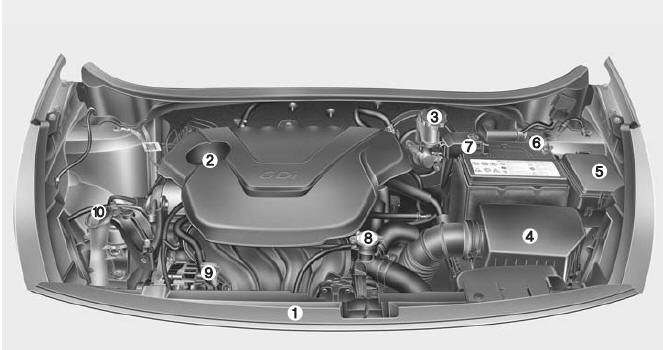

Kia Rio: Engine compartment - Your vehicle at a glance - Kia Rio UB 2012-2020 Owners ManualKia Rio: Engine compartment

1. Engine Coolant Reservoir


1. Engine Coolant Reservoir
2. Engine Oil Filler Cap
3. Brake/Clutch Fluid Reservoir
4. Air Cleaner
5. Fuse Box
6. Negative Battery Terminal
7. Positive Battery Terminal
8. Radiator Cap
9. Engine Oil Dipstick
10. Windshield Washer Fluid Reservoir
