Kia Rio: Heater Unit Component Location

Heater

...

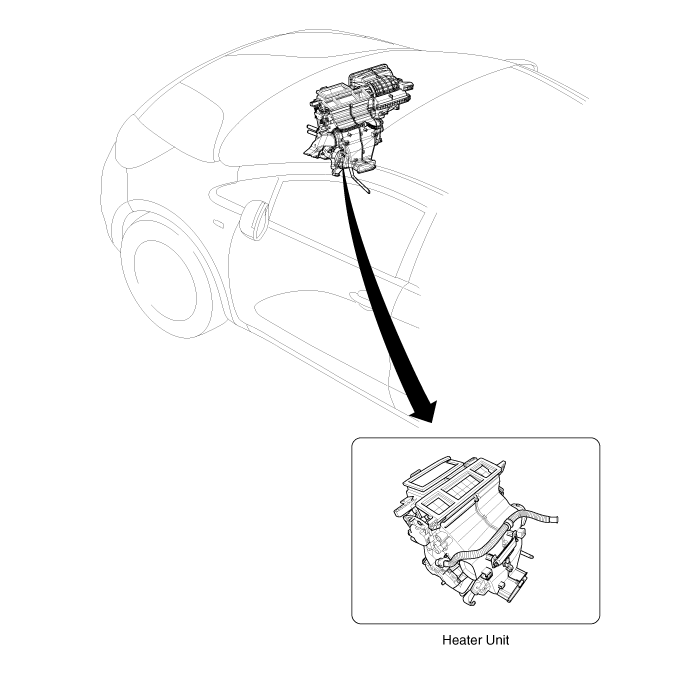

Heater Unit Components

1. Shower Duct (Left) 2. Heater Pipe Cover 3. Mode Control Actuator 4. Mode Control Actuator Bracket 5. Defog mode lever (FATC) 6. Mode Control Main Lever (MANUAL) 7. Vent ...
