Kia Rio: Ignition Switch Assembly Inspection - Button Engine Start System - Body Electrical System - Kia Rio UB 2012-2020 Service ManualKia Rio: Ignition Switch Assembly Inspection

1.
Disconnect the ignition switch connector (B) and key switch connector (A) from under the steering column.


2.

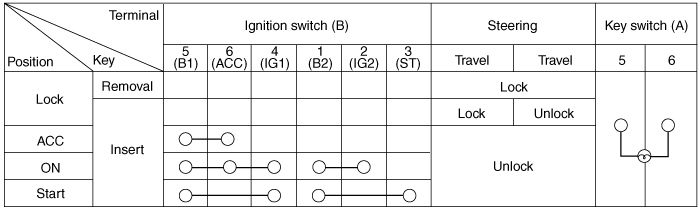

Check for continuity between the terminals.
3.
If continuity is not specified, replace the switch.
