Kia Rio: Inspection - Battery Sensor - Charging System - Engine Electrical System - Kia Rio UB 2012-2020 Service ManualKia Rio: Inspection

1.
Check for DTCs.


•
If a DTC is present, perform troubleshooting in accordance with the procedure for that DTC. (Refer to DTC guide)
2.

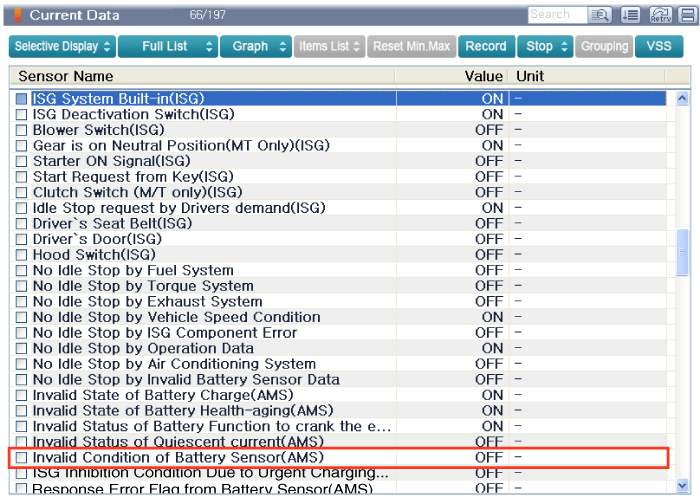

Check if battery sensor status is normal on current data by using GDS.
If its value is ON, replace the battery sensor.
A.
Invalid Conditon of Battery sensor (AMS) = OFF




•
Battery sensor may operate abnormally if the parasitic current is more than 100mA.
Therefore, if battery sensor signal error occurs, inspect the vehicle parasitic current first before replacing the battery sensor.
(Refer to Charging System - "Battery")
Installation
1. Install in the reverse order of removal. Battery sensor cable installation bolt: 10.8 ~ 13.7 N.m (1.1 ~ 1.4 kgf.m, 8.0 ~10.1 lb-ft) ...
Adjustment
Battery Sensor Recalibration Procedure If disconnecting the negative (-) battery cable from the battery during repair work for the vehicle equipped with Alternator Managing Syst ...
