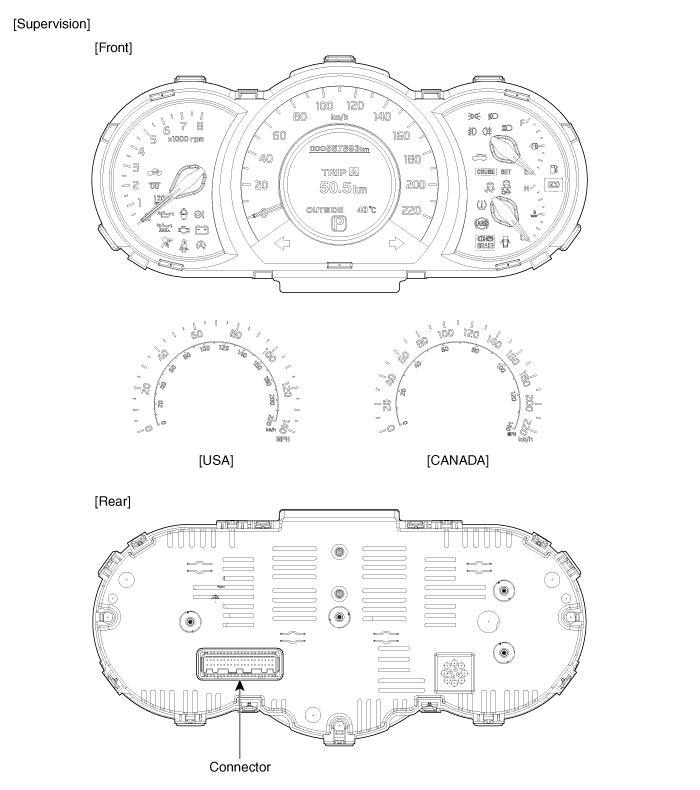

Kia Rio: Instrument Cluster Components

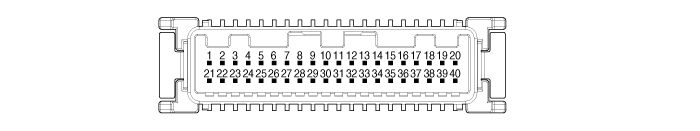

| Pin No. |
Description |
Pin No. |
Description |
| 1 |
Cluster ground |
21 |
S ground |
| 2 |
P ground |
22 |
Fuel (-) |
| 3 |
Rheostat output |
23 |
- |
| 4 |
Rheostat detent output |
24 |
DC-DC (ISG) |
| 5 |
ALT L output |
25 |
Battery (+) |
| 6 |
High beam (+) |
26 |
Ignition 1 |
| 7 |
4P output |
27 |
Speed |
| 8 |
AT P output |
28 |
- |
| 9 |
AT N output |
29 |
C_CAN_HIGH |
| 10 |
AT D output |
30 |
C_CAN_LOW |
| 11 |
Fuel input |
31 |
B_CAN_LOW |
| 12 |
- |
32 |
B_CAN_HIGH |
| 13 |
Parking brake |
33 |
Rheostat up |
| 14 |
Airbag supply |
34 |
Rheostat down |
| 15 |
Check engine |
35 |
Cluster signal |
| 16 |
Water seperator |
36 |
Active ECO |
| 17 |
- |
37 |
- |
| 18 |
Immobilizer |
38 |
Oil pressure |
| 19 |
Key out |
39 |
Battery charge |
| 20 |
Wahser low |
40 |
Illumination (+) |
| Pin No. |
Description |
Pin No. |
Description |
| 1 |
Cluster ground |
21 |
S ground |
| 2 |
P ground |
22 |
Fuel (-) |
| 3 |
Rheostat output |
23 |
- |
| 4 |
Rheostat detent output |
24 |
DC-DC (ISG) |
| 5 |
ALT L output |
25 |
Battery (+) |
| 6 |
High beam (+) |
26 |
Ignition 1 |
| 7 |
4P output |
27 |
Speed |
| 8 |
AT P output |
28 |
- |
| 9 |
AT N output |
29 |
C_CAN_HIGH |
| 10 |
AT D output |
30 |
C_CAN_LOW |
| 11 |
Fuel input |
31 |
B_CAN_LOW |
| 12 |
- |
32 |
B_CAN_HIGH |
| 13 |
Parking brake |
33 |
Rheostat up |
| 14 |
Airbag supply |
34 |
Rheostat down |
| 15 |
Check engine |
35 |
Cluster signal |
| 16 |
Water seperator |
36 |
Active ECO |
| 17 |
- |
37 |
- |
| 18 |
Immobilizer |
38 |
Oil pressure |
| 19 |
- |
39 |
Battery charge |
| 20 |
Wahser low |
40 |
Illumination (+) |
