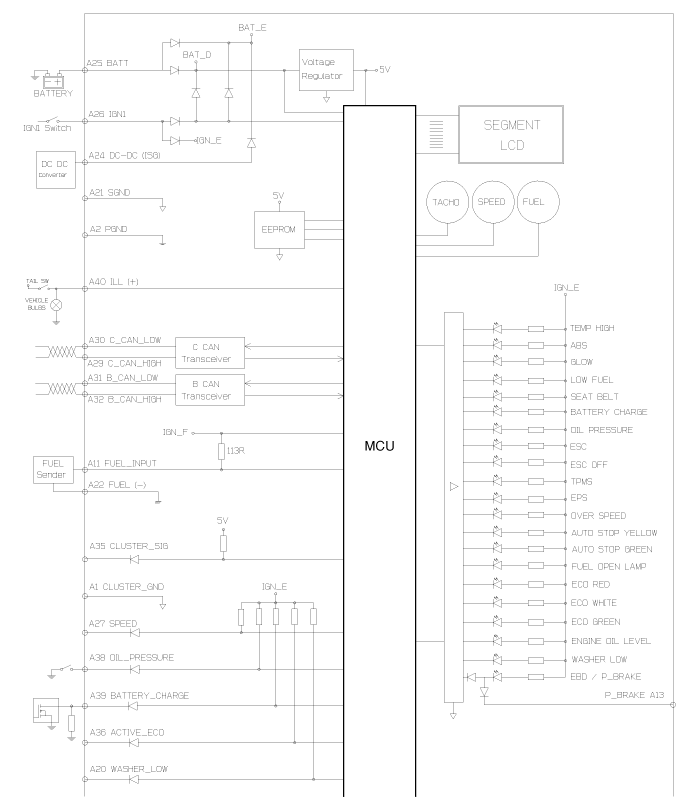

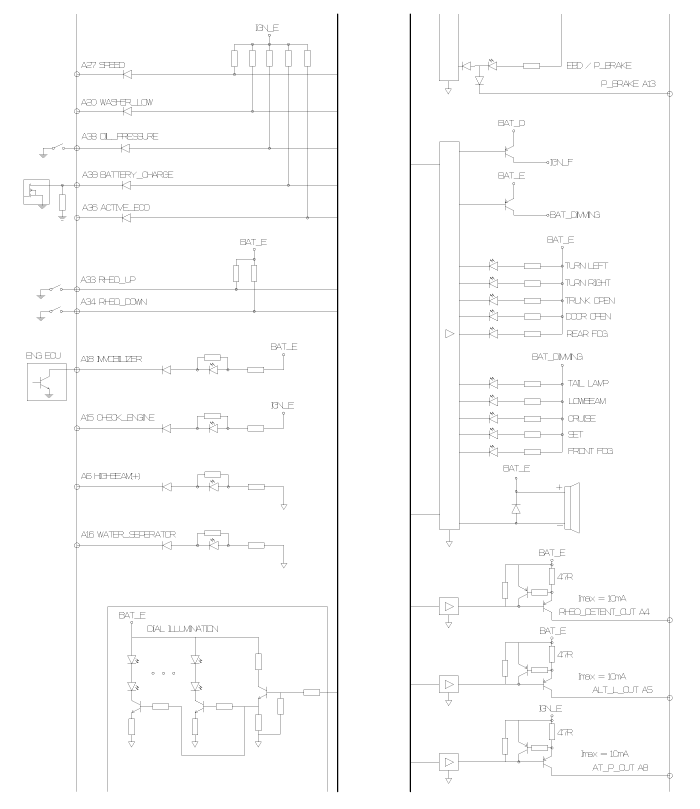

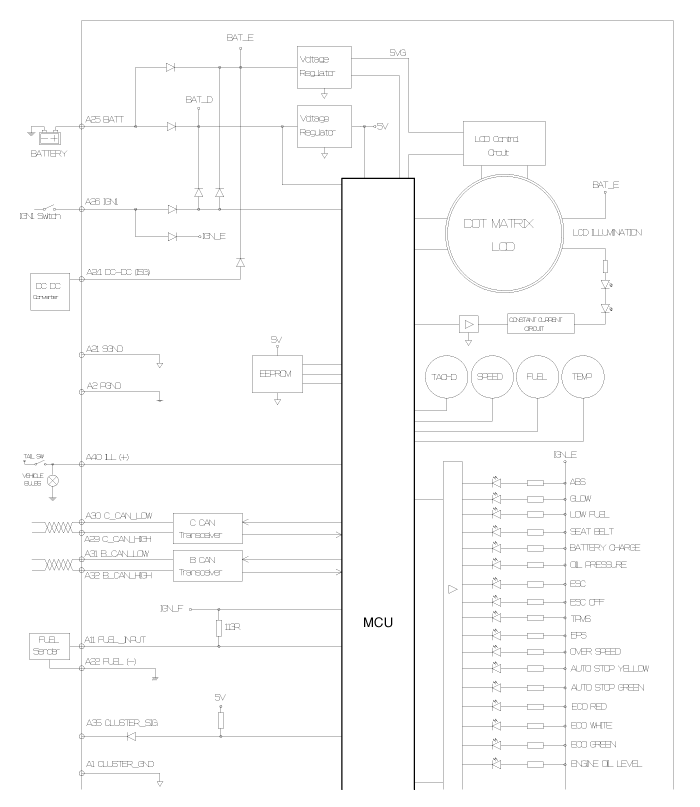

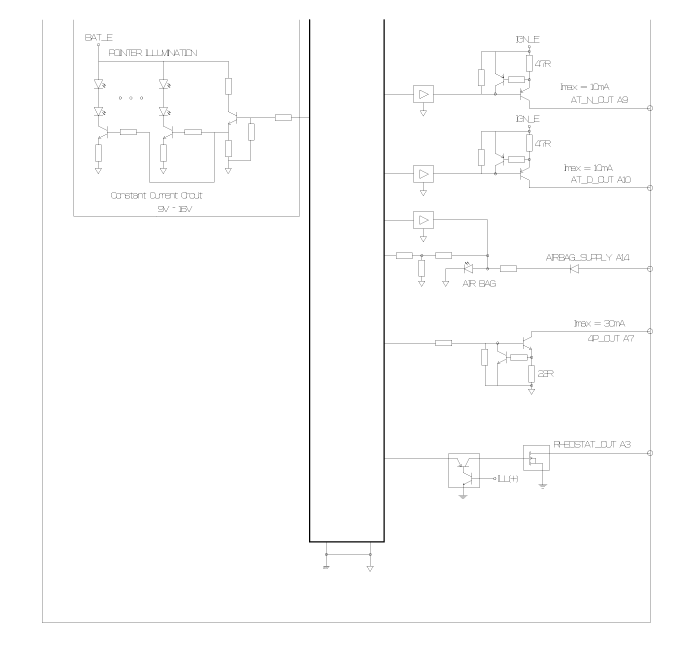

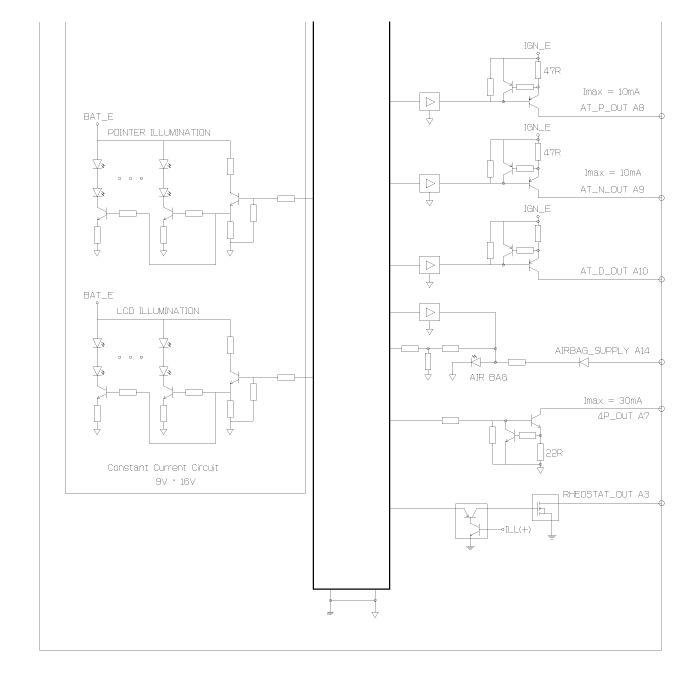

Kia Rio: Instrument Cluster Circuit Diagram

Instrument Cluster Components

Pin No. Description Pin No. Description 1 Cluster ground 21 S ground 2 P ground 22 Fuel (-) ...

Instrument Cluster Inspection

Speedometer 1. Adjust the pressure of the tires to the specified level. 2. Drive the vehicle onto a speedometer tester. Use wheel chocks ...
