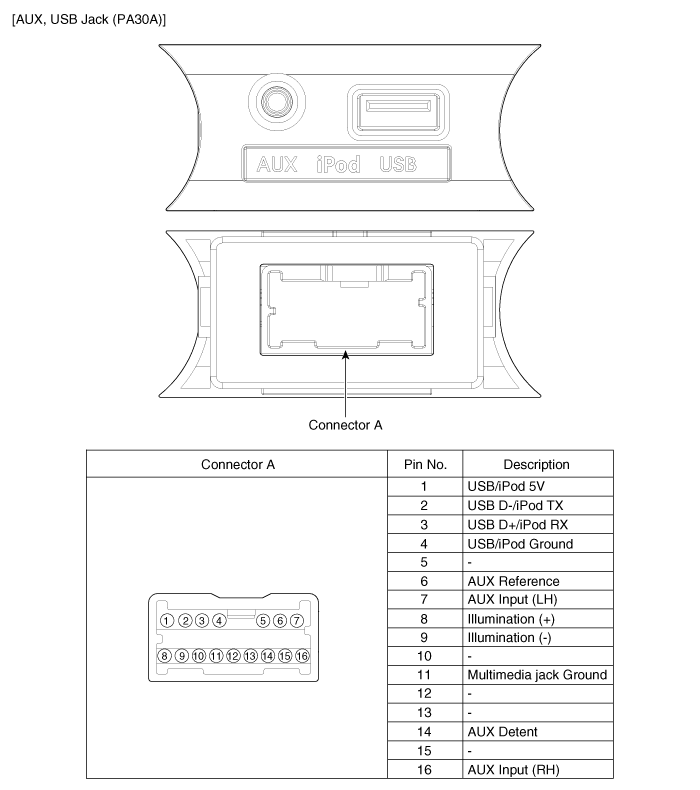

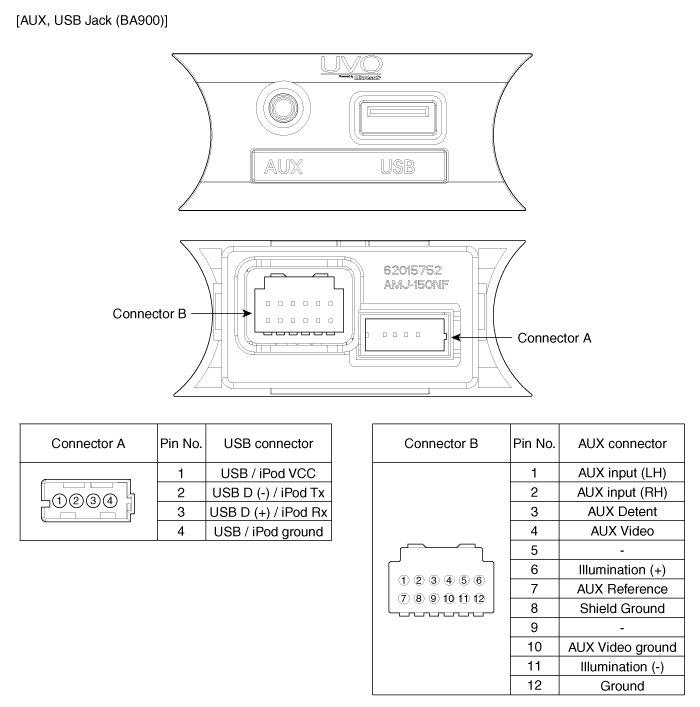

Kia Rio: Multimedia Jack Circuit Diagram

Audio Remote Control Installation

1. Reassemble the steering wheel remote control switch after connecting the connector. 2. Reassemble the steering wheel. ...

Multimedia Jack Description

The multimedia jack on the console upper cover is for customers who like to listen to external portable music players like the MP3, iPod and etc., through the vehicle's sound system when ...
