Kia Rio: Output Speed Sensor Signal Waveform

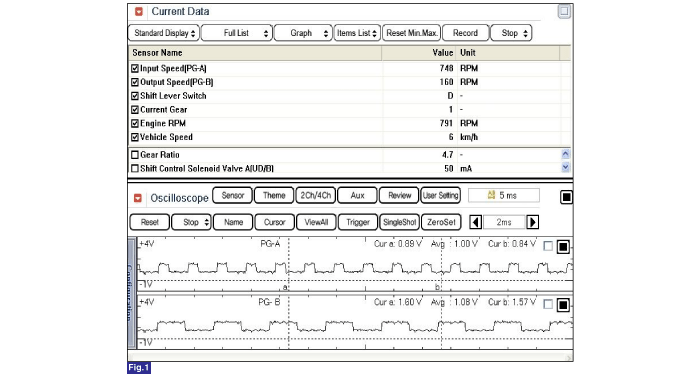

Fig 1) Input/Output speed sensor at low speed

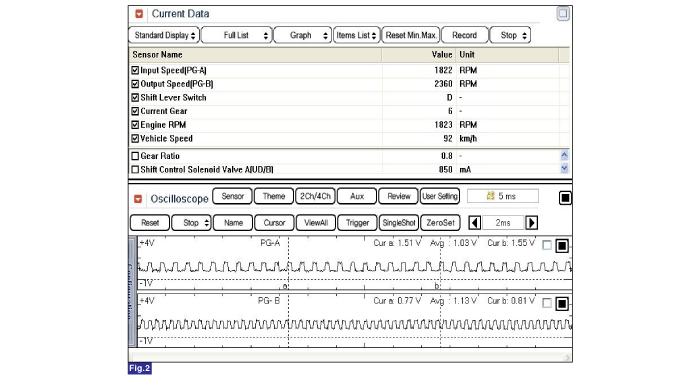

Fig 2) Input/Output speed sensor at high speed

Output Speed Sensor Circuit Diagram

...

Output Speed Sensor Inspection

1. Check signal waveform of Input & output speed sensor using the GDS. Specification: Refer to "Signal Wave Form" section. ...
