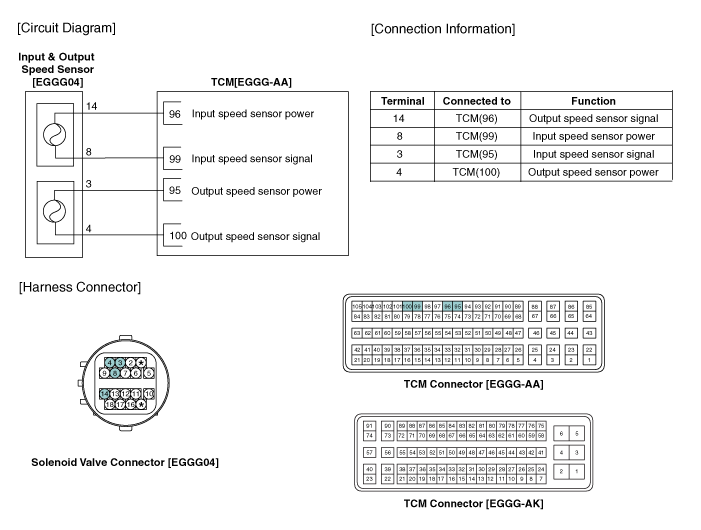

Kia Rio: Output Speed Sensor Circuit Diagram - Automatic Transaxle Control System - Automatic Transaxle System - Kia Rio UB 2012-2020 Service ManualKia Rio: Output Speed Sensor Circuit Diagram

Output Speed Sensor Signal Waveform


Output Speed Sensor Specifications
▷ Type: Hall effect sensor Operation condition [°C(°F)] ((-)40 ~ 150)) -40 ~ 302 Air gap(mm)in. (0.85 ~ 1.3) 0.0335 ~ 0.0512 Output volt ...
Output Speed Sensor Signal Waveform
Fig 1) Input/Output speed sensor at low speed Fig 2) Input/Output speed sensor at high speed ...
See also:

Mode Control Actuator Inspection
1. Turn the ignition switch OFF. 2. Disconnect the mode control actuator connector. 3. Verify that the mode con ...

Output Speed Sensor Description
The output speed sensor (A) is a vital unit that measures the rate of rotation of the transaxle's turbine shaft and output shaft, and delivers the readings to the TCM. The sensor provides ...
