Kia Rio: Relay Box (Engine Compartment) Components

Component Location

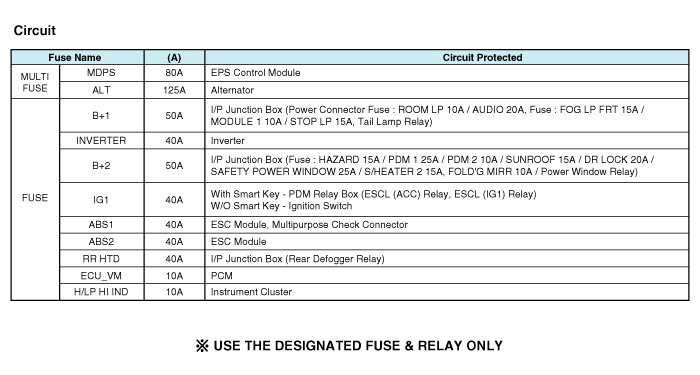

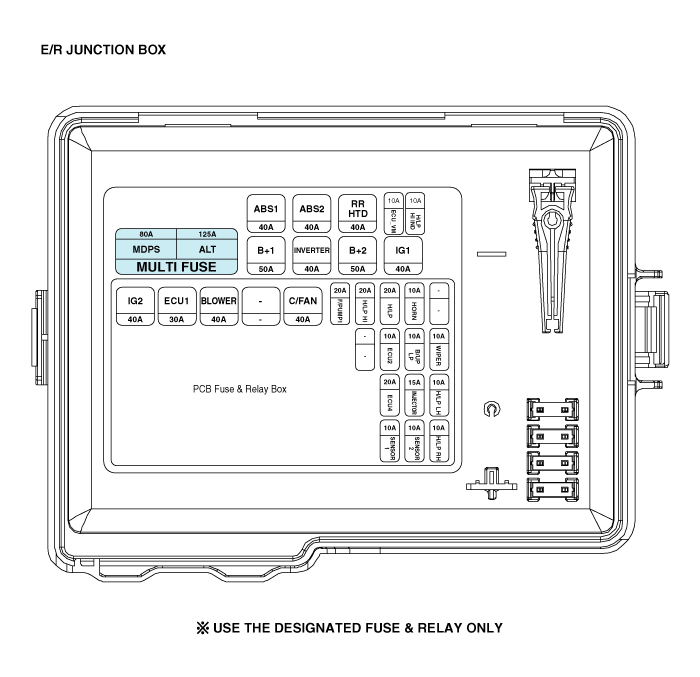

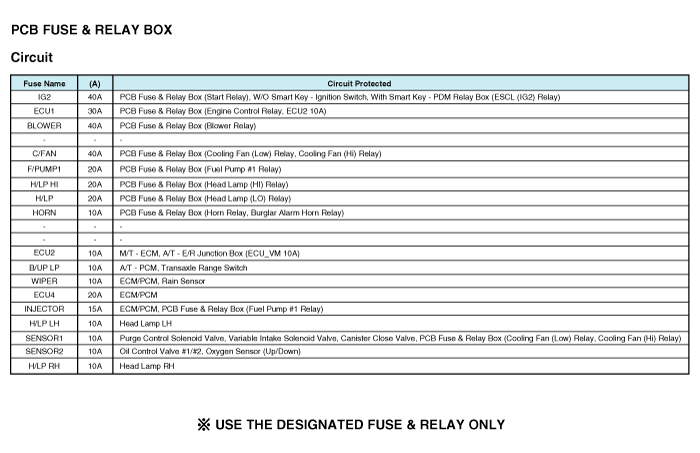

1. PCB fuse & relay box (Head lamp low/ hi, Fuel pump #1, HAC, Engine control, Front wiper, Rain sensor, Blower, Cooling fan low/ hi, Horn, Buglar alarm horn, Start relay) ...

Relay Box (Engine Compartment) Inspection

Replacement of EMS box 1. Disconnect the negative (-) battery terminal. 2. Push hooks in the engine room relay box out to the arrow directio ...
