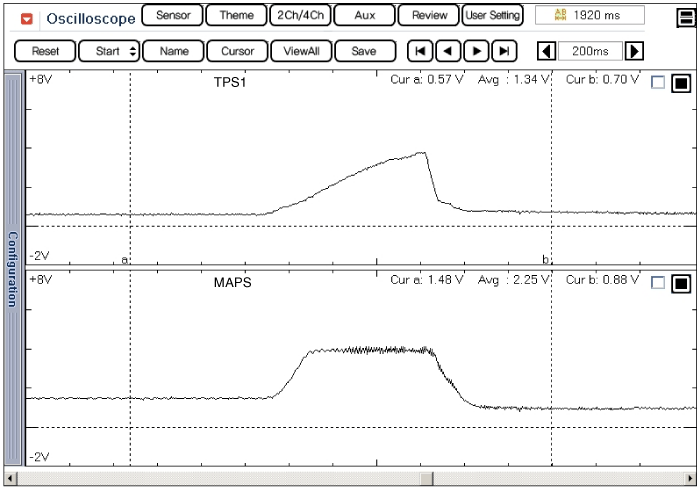

Kia Rio: Signal Waveform - Manifold Absolute Pressure Sensor (MAPS) - Engine Control System - Engine Control / Fuel System - Kia Rio UB 2012-2020 Service ManualKia Rio: Signal Waveform

Circuit Diagram


Specification
Pressure [kPa (kgf/cm², psi)] Output Voltage (V) 20.0 (0.20, 2.9) 0.79 46.7 (0.47, 6.77) 1.84 101.3 (1.03, 14.7) 4 ...
Circuit Diagram
(M/T) (A/T) ...
