Kia Rio: Spark Plug: Description - Ignition System - Engine Electrical System - Kia Rio UB 2012-2020 Service ManualKia Rio: Spark Plug: Description

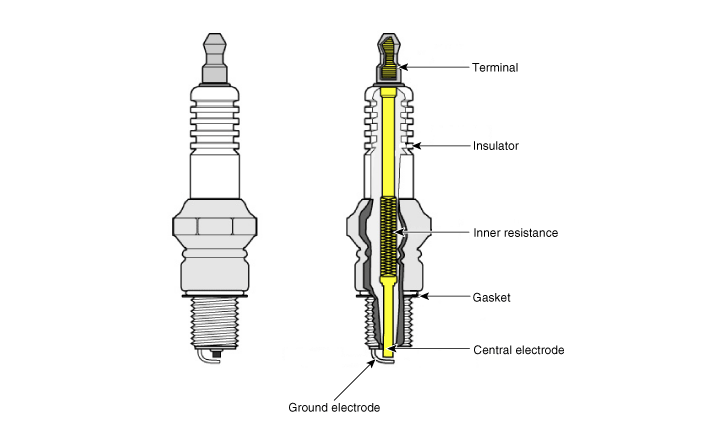

A spark plug is a device for delivering electric current from an ignition system to the combustion chamber of a spark-ignition engine to ignite the compressed fuel/air mixture therein by means of an electric spark, while containing combustion pressure within the engine. A spark plug has a metal threaded shell, electrically isolated from a central electrode by a porcelain insulator.

Spark Plug: Specification


Ignition Coil: Inspection
1. Measure the primary coil resistance between terminals (+) and (-). Standard value: 0.75Ω ± 15% ...
Spark Plug: Specification
Item Specification Type SILZKR6B10E Gap 0.9 ~ 1.0 mm (0.0354 ~ 0.0394 in.) ...
